StyleWriter II Restoration

February 01, 2009 Filed in: Printers | Restoration | Retr0brite | Peripherals
I cant believe it’s been almost 2 months since I took the StyleWriter II apart. I guess I’ve ben busier than usual with the holidays and all.

Anyway, down to business. I picked up more 30% H2O2 this weekend and set out to restore it. Here’s the work flow:

If you’ve been following along, you know that the StyleWriter II was last left as a pile of loose plastic and electronics.

100_4744

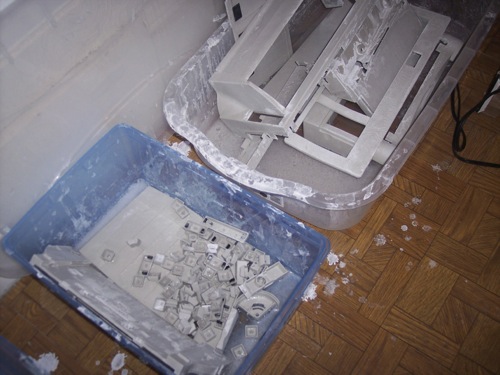

I prepared another peroxide bath and proceeded to dip the lot. I also took this as an opportunity to dip the Macintosh SE keyboard again. Some of the keys were still pretty yellow and could have used a second dipping.

100_6085

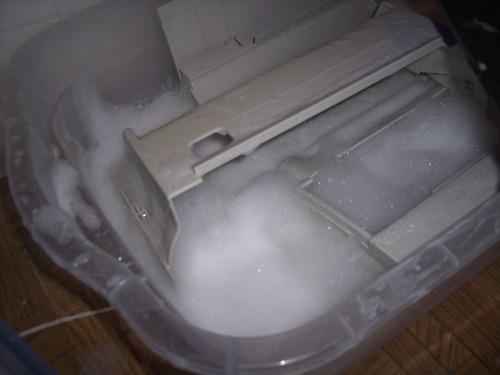

Mmmm, bubbly! I forgot to add the corn starch this time. Silly me. All I got was foam, but it did the job. I left that parts soaking all day and brushed on the solution every hour or two.

100_6078

As far as the reassembly went, it was pretty easy. I rinsed and dried off all the parts and then just followed along with the pictures from the disassembly, but backwards.

I want to blow thought this quickly so I can focus on the before and after pictures.

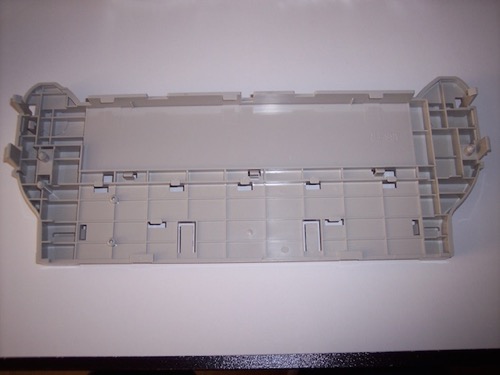

With that said, I started with the base.

stylewriter_resoration_6091

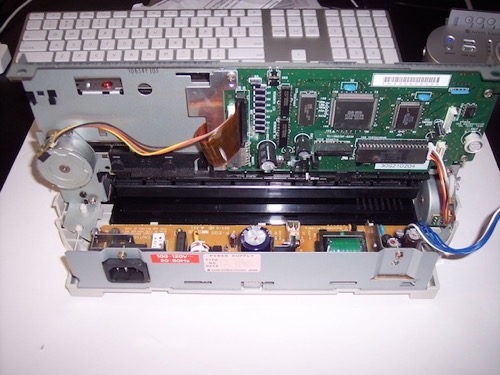

I then added the power supply and main assembly.

stylewriter_resoration_6092

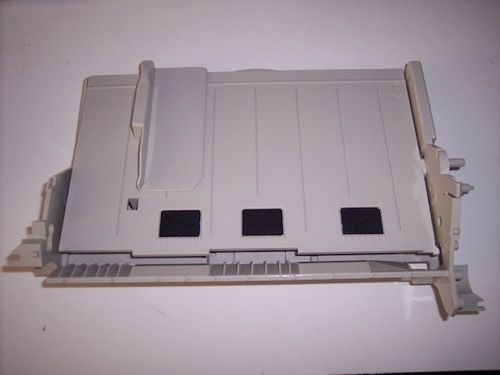

I reassembled the paper tray.

stylewriter_resoration_6096

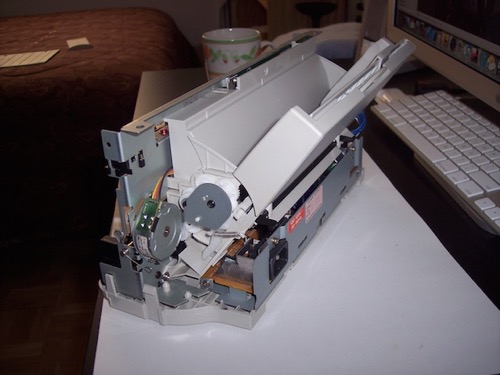

I put all the gears back on and attached it to the main assembly.

stylewriter_resoration_6099

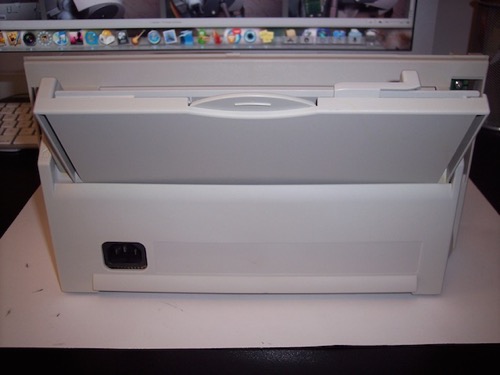

I then attached the back cover...

stylewriter_resoration_6106

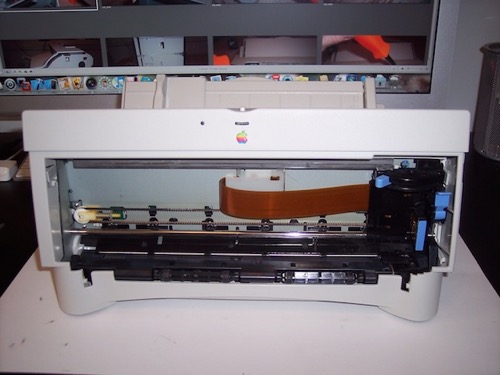

... followed by the front cover.

stylewriter_resoration_6110

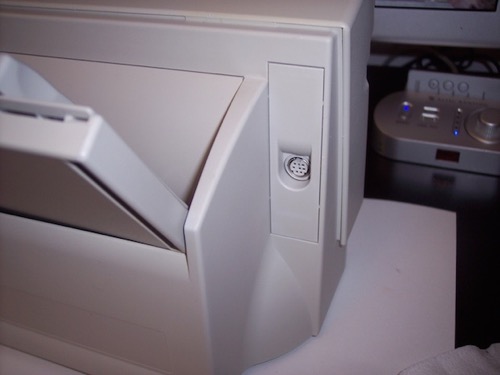

I put the I/O port cover back on.

stylewriter_resoration_6113

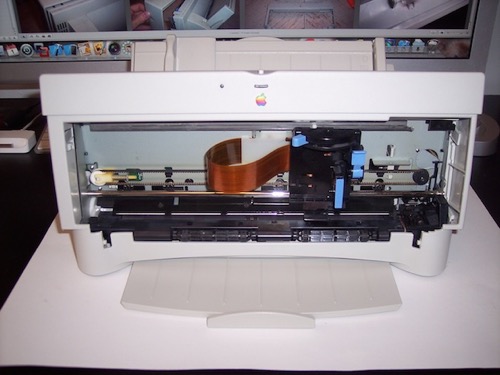

Inserted the bottom paper tray.

stylewriter_resoration_6114

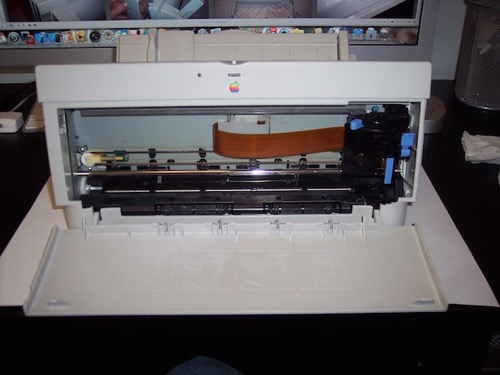

And finished up by attaching the front door.

stylewriter_resoration_6115

Now for some before and after pictures!

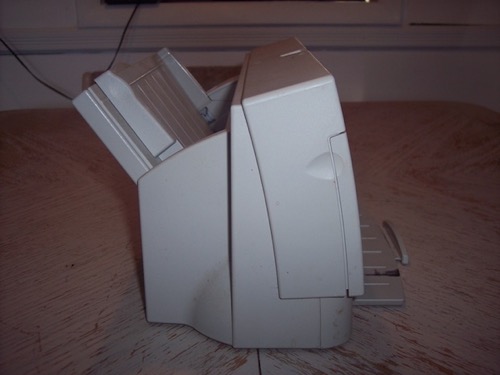

Before: Overall slight yellowing. Very dirty.

stylewriter_resoration_4669

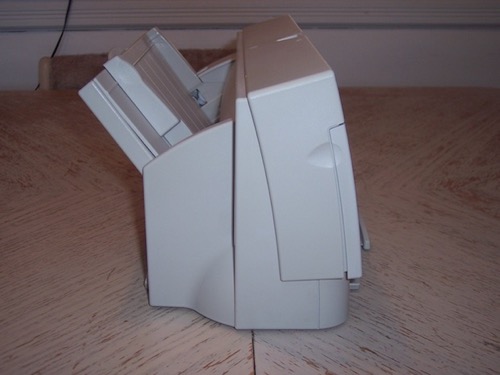

After: Color is better, cleaner.

stylewriter_resoration_6117

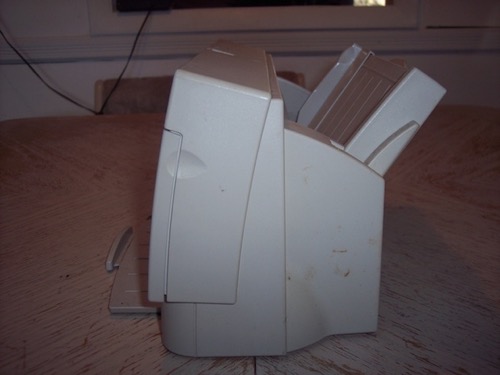

Before: Very, very dirty.

stylewriter_resoration_4671

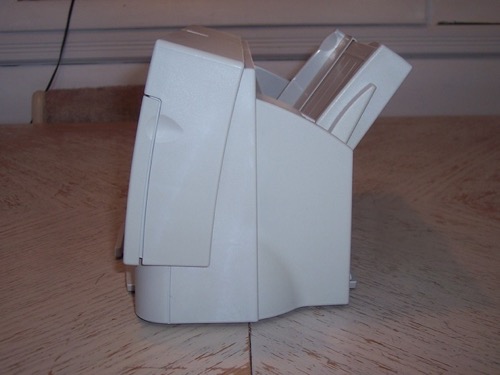

After: Much cleaner.

stylewriter_resoration_6118

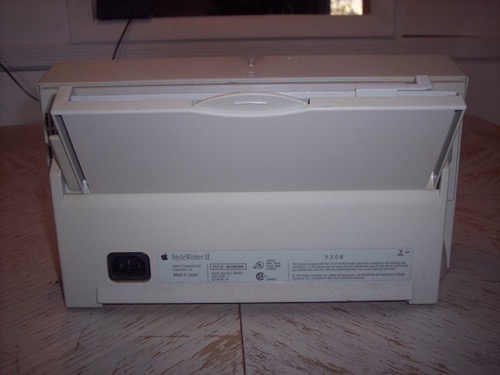

Before: You can see the slight yellow tone.

stylewriter_resoration_4670

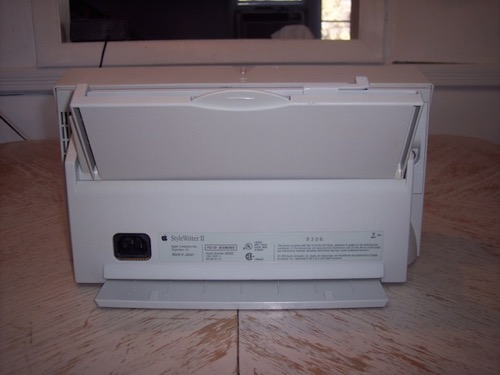

After: Original “platinum” color restored.

stylewriter_resoration_6119

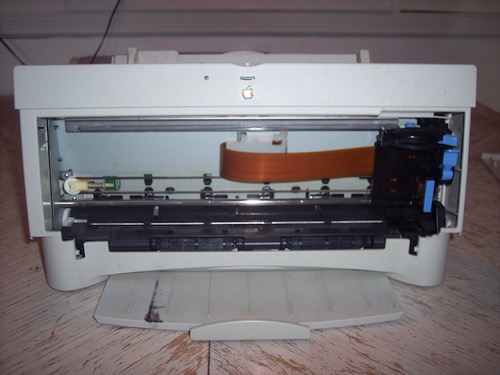

Before: The bottom paper tray is gross.

stylewriter_resoration_4673

After: Clean.

stylewriter_resoration_6114

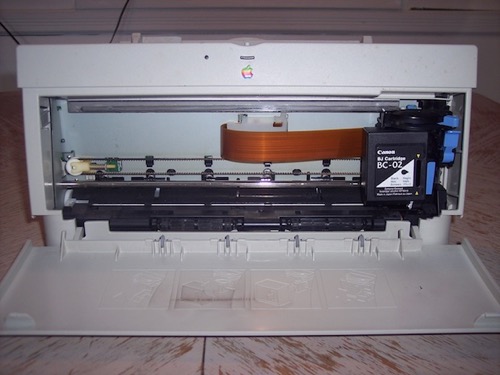

Before: Dirty inside front door.

stylewriter_resoration_4672

After: Clean.

stylewriter_resoration_6115

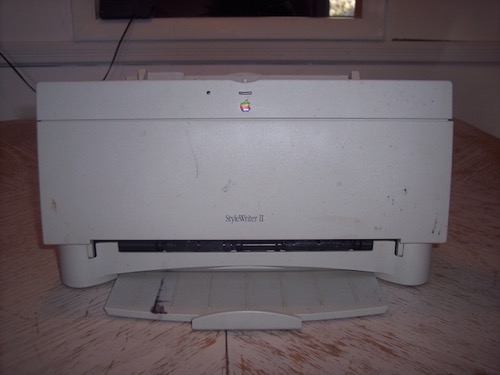

Before: Same as the back. Dirty and toned.

stylewriter_resoration_4668

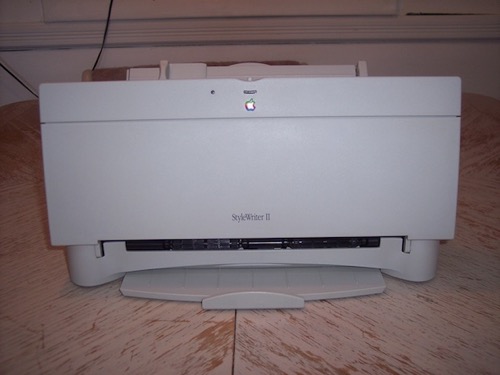

After: Now, all clean and platinum.

stylewriter_resoration_6116

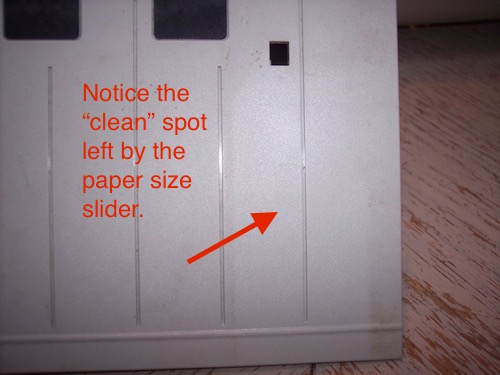

Before: Paper tray

stylewriter_resoration_4724

After: Paper tray

The finish is now nice and even.

stylewriter_resoration_6094

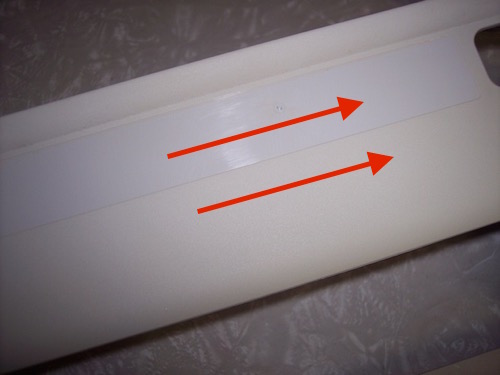

Before: Back label panel

Once the label was removed, the discoloration was even more obvious.

stylewriter_resoration_4751

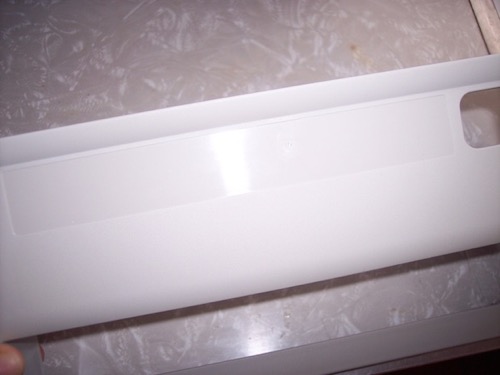

After: Back label panel

The color is now uniform.

stylewriter_resoration_6088
