Macintosh Portable Disassembly and Cleaning

My Macintosh Portable is in really good shape, as far as coloration anyway. The battery won’t hold a charge and it gets red hot when I charge it. As we all know, you can’t boot a Macintosh Portable with a dead battery. I’ll have to replace or rebuild it. As far as restoration goes, I don’t think I’ll have to retr0brite this machine any time soon. Maybe the keyboard, but that’s all.

The seller stated that the carrying case had a musty smell. Not a problem. I took it with the hopes that some dry cleaning would eliminate any basement-like odors that it might have. I think the seller took it upon himself to mask the smell by spraying it with some cologne or something because it smells like a high school senior on prom night. I’ve had the case airing out for a few days and it still smells like cologne. I don’t know if he sprayed the machine too or if it just picked up the scent from the case during shipping because it too smells like eau de toilette.

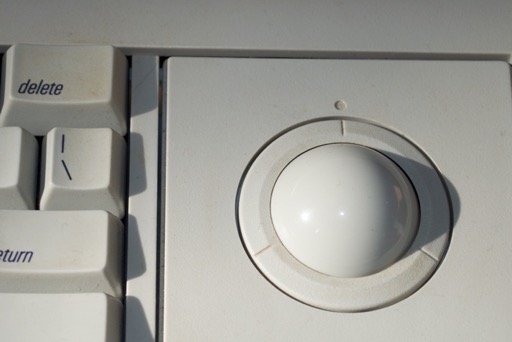

Although the machine is in really good shape and appears pretty clean, close inspection reveals that there’s dirt and debris in the hard to reach nooks and crannies.

Pasted Graphic 1291

I started to wipe the whole thing down with alcohol and tried to get into all the little crevices with a Q-Tip. It’s just going to take way too long and I think it’ll never be as clean as it needs to be to eliminate the cologne smell. Besides, I’m going to have to pop off every key to clean all the sides. They’re pretty dirty.

It has to come apart and be washed in the sink.

Let’s get to it.....

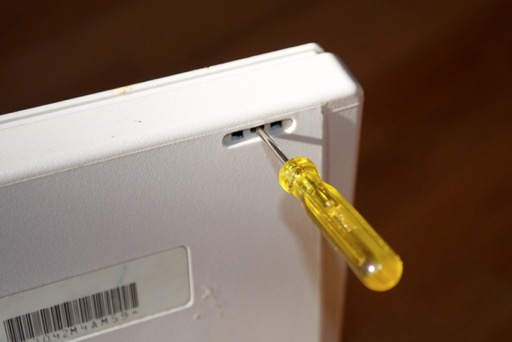

If you remove the rubber feet from the bottom of the machine, you can get in there with a small screwdriver and pop the latches that secure the top assembly that covers the keyboard.

Pasted Graphic 1290

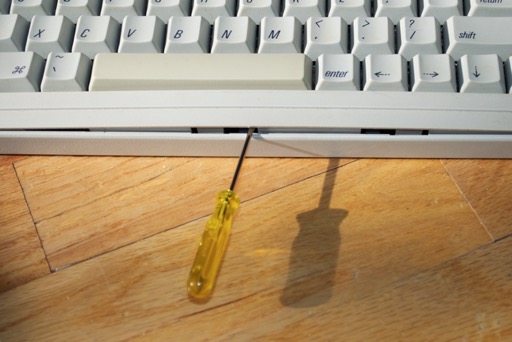

Once you’ve disengaged the latches from below, you can wiggle the screwdriver around the case and pop the whole keyboard cover off.

Pasted Graphic 1289

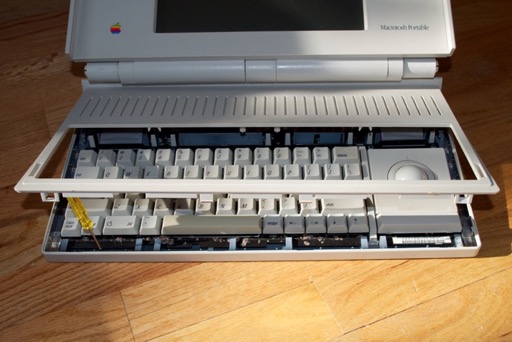

It’ll just lift right out. This is, by the way, how you’d swap the location of the trackball to left side of the keyboard if you were left handed. You could also swap out the trackball for an optional numeric keypad.

Pasted Graphic 1288

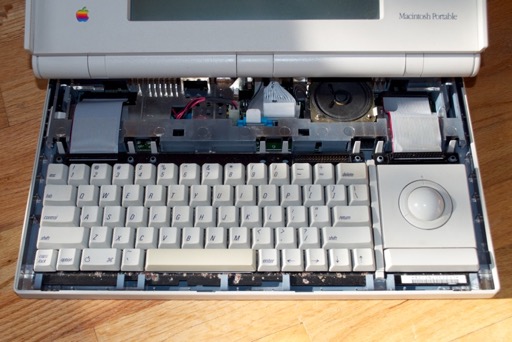

What’s this is see? Rust under the keyboard? Not a good sign. I hope the logicboard is OK. I did manage to get the machine to boot once, so it’s not dead. I think the oxidation is limited to the keyboard.

Pasted Graphic 1287

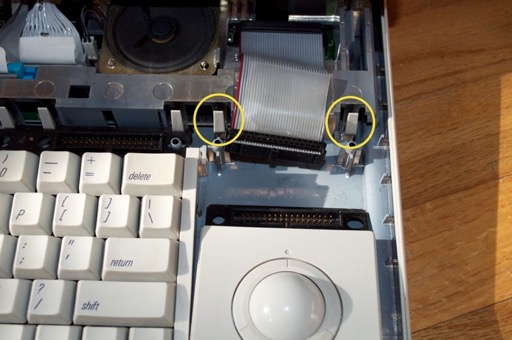

Disconnect the trackpad ribbon cable and then lift the entire assembly out from underneath the two gray clips.

Pasted Graphic 1286

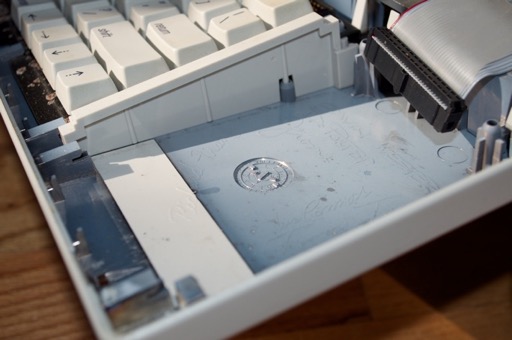

See, this is the kind of dirt you’ll never get at without taking it apart.

Pasted Graphic 1285

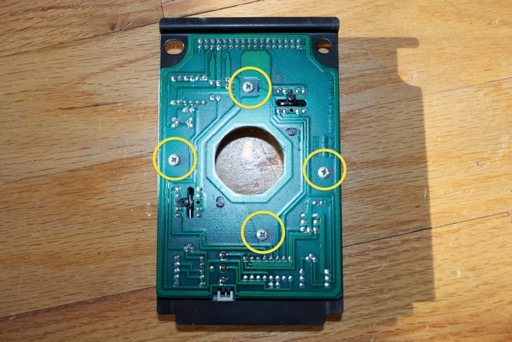

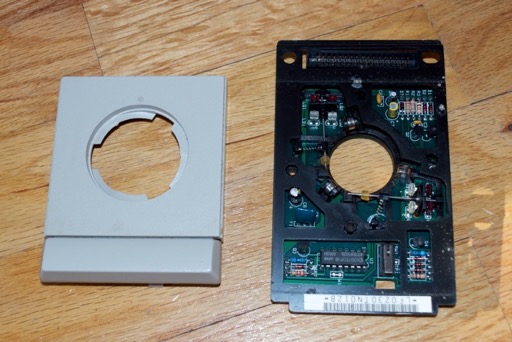

Once the trackpad has been removed, you can take off the plastics by removing the 4 screws from the back.

Pasted Graphic 1284

Pasted Graphic 1283

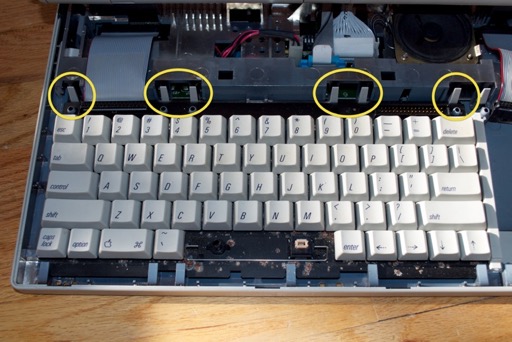

Disconnect the keyboard ribbon cable and then lift the entire assembly out from underneath the six gray clips.

Pasted Graphic 1282

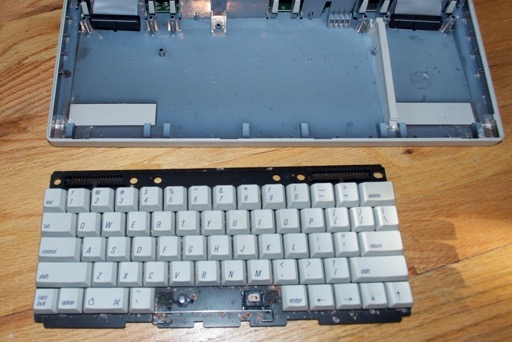

The keyboard will lift right out.

Pasted Graphic 1281

I’m actually soaking some parts for my Apple Scribe Printer while I’m doing this disassembly. This is probably a good time to pull off that spacebar and throw it in the mix. I made a strong solution, so it should be done in no time. Actually, I’ll do them all.

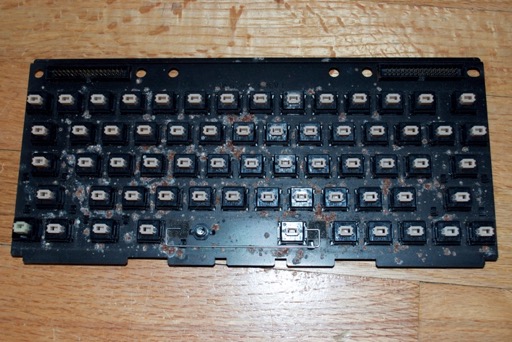

Man, is it rusty under there!

Pasted Graphic 1280

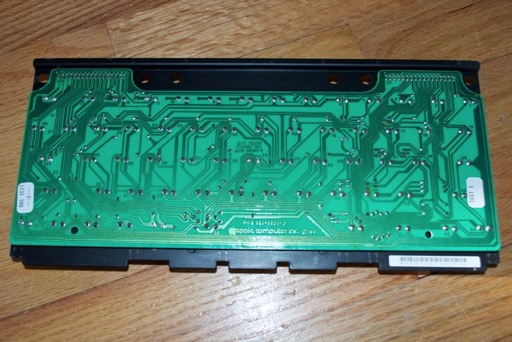

There’s no damage underneath.

Pasted Graphic 1279

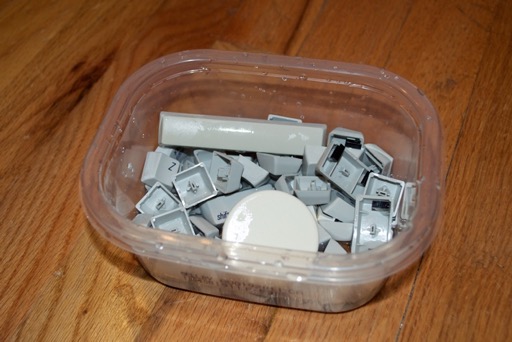

A few hours in the sauce and there’s already a very big improvement with the spacebar. I might soak it again, depending on how it looks when I put it all back together.

Pasted Graphic 1278

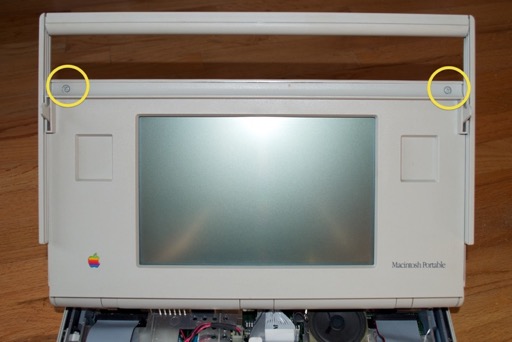

Continuing with the disassembly, remove these two screws.

Pasted Graphic 1277

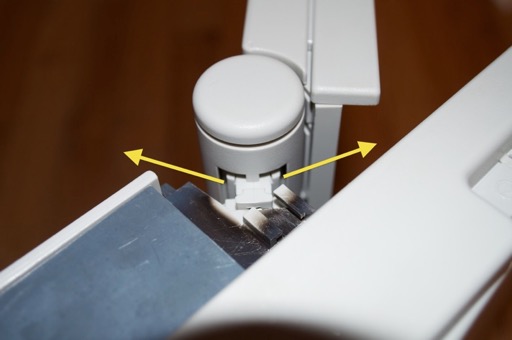

Remove the caps from the side of the display. There’s two flexible arm-like-things on the underside of them that lock them in place. You have to push them out with a small screwdriver to disengage them.

Pasted Graphic 1276

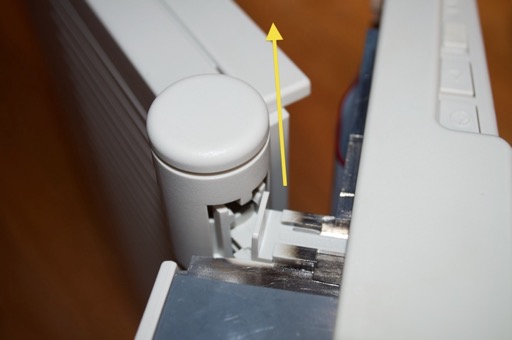

Once they’re “unlocked”, they’ll slide right off.

Pasted Graphic 1275

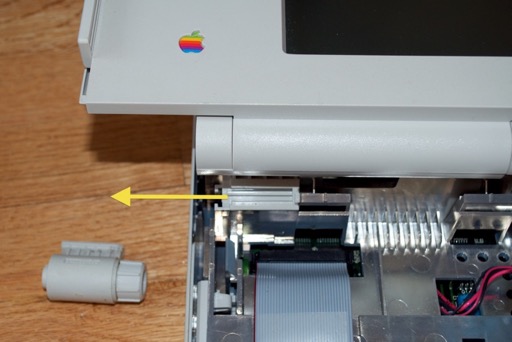

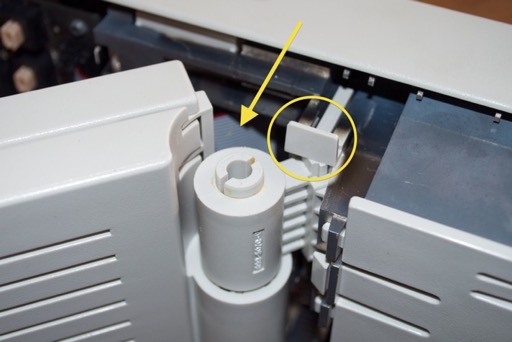

You can then pull the “keys” out.

Pasted Graphic 1274

You can them remove the huge chunks of rubber that hinge the display.

Pasted Graphic 1273

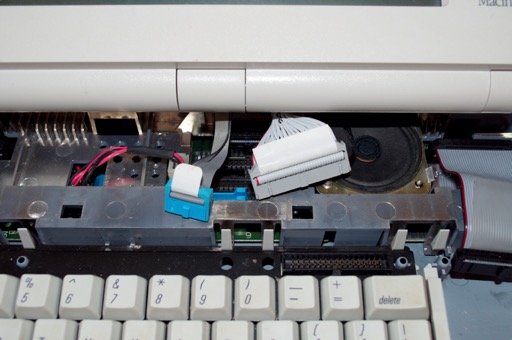

Then disconnect the blue display ribbon and the gray hard drive ribbon.

Pasted Graphic 1272

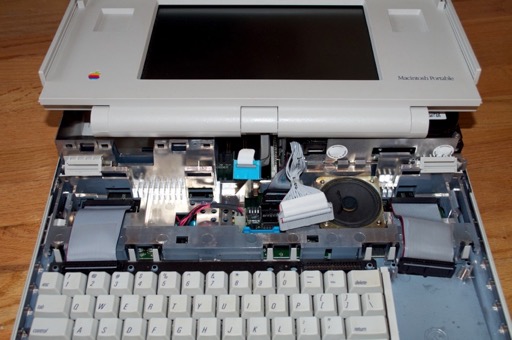

The entire display assembly will lift right off.

Pasted Graphic 1271

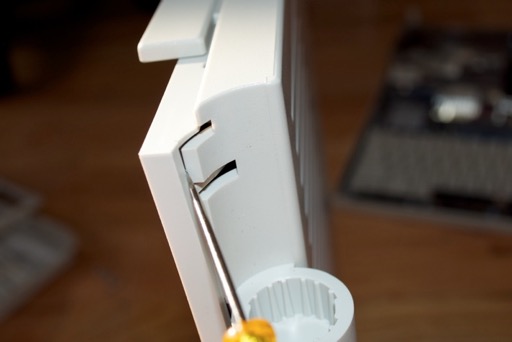

Pop these tabs on the bottom.

Pasted Graphic 1270

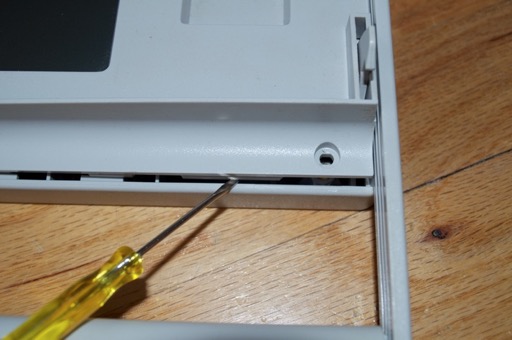

And the ones along the top.

Pasted Graphic 1269

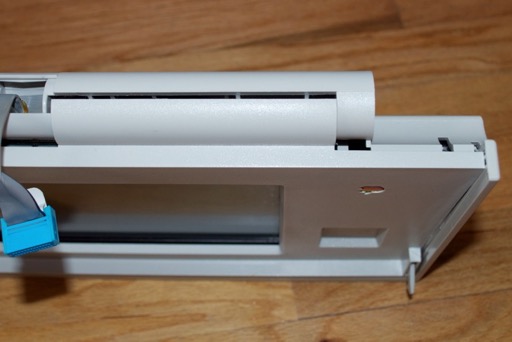

Once the tabs are free, you’ll be able to inch around the whole assembly and separate the two halves. This is a tricky process since the sliding handle is in the way. Be careful not to break any of the tabs in the process.

Pasted Graphic 1268

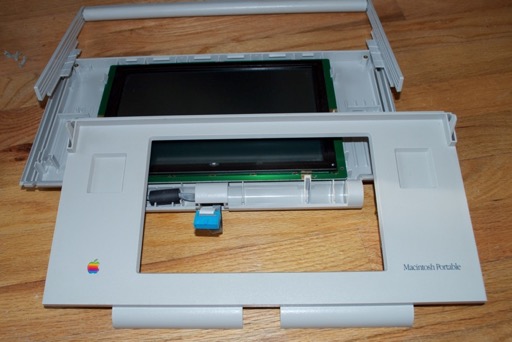

Eventually, they’ll come apart.

Pasted Graphic 1267

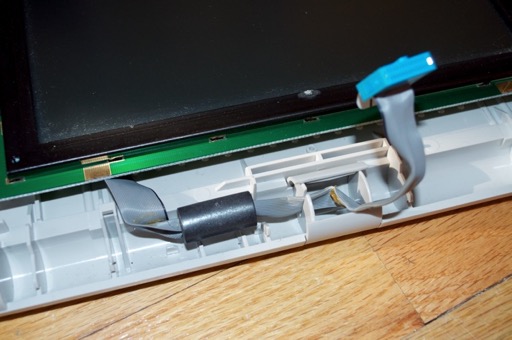

Remove the cable from the housing.

Pasted Graphic 1266

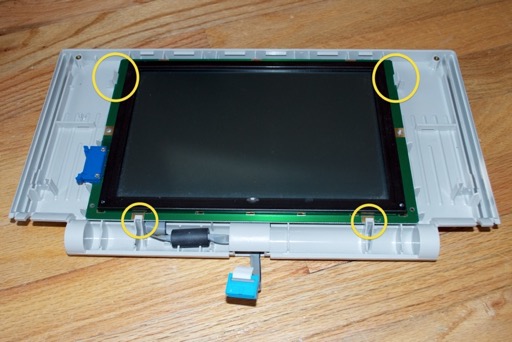

The display is secured to the back panel by two clips. Pop those, and then lift it out from under the two on the bottom.

Pasted Graphic 1265

Pasted Graphic 1264

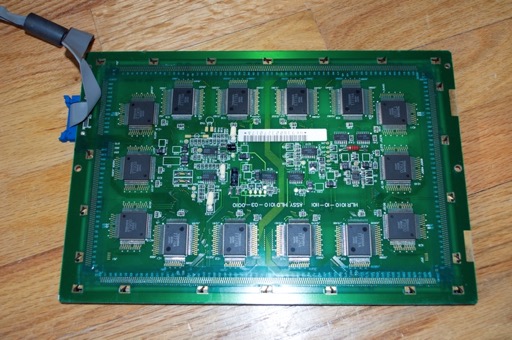

Wow, that’s a pretty busy-looking board!

Pasted Graphic 1263

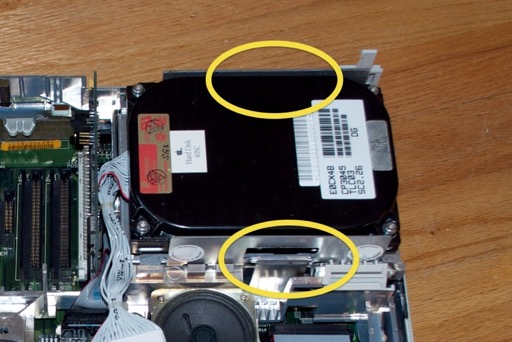

Since the hard drive cable has already been disconnected, it’ll just lift right out by popping the two tabs that hold it down.

Pasted Graphic 1262

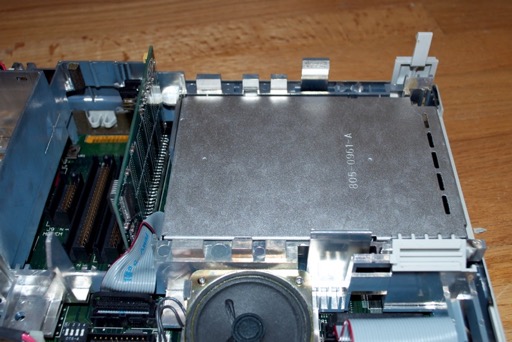

Underneath the hard drive rests the floppy drive. That too will just lift right out, once the cable is disconnected.

Pasted Graphic 1261

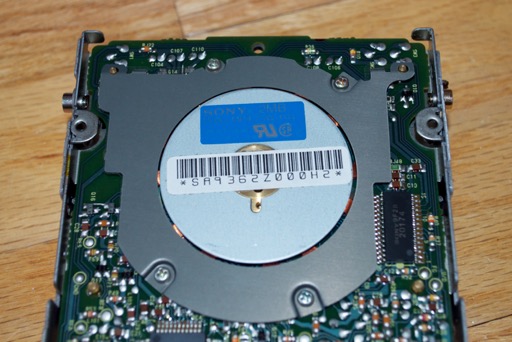

It’s a Sony MP-F75W-11G. Looks like the Portable reads 1.44M floppies. I don’t think I realized that. Bonus!

Pasted Graphic 1260

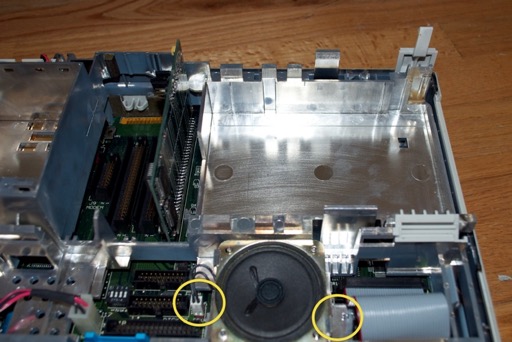

The speaker can also be removed. Disconnect the cable on the left and pop the tab on the right.

Pasted Graphic 1259

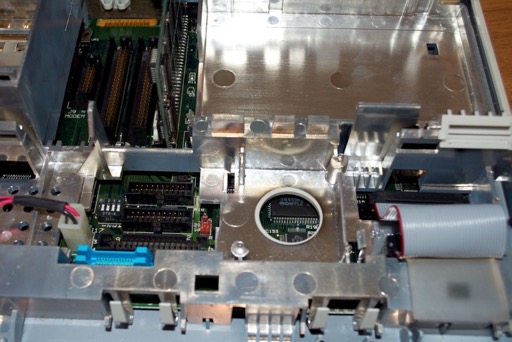

It’ll lift right out.

Pasted Graphic 1258

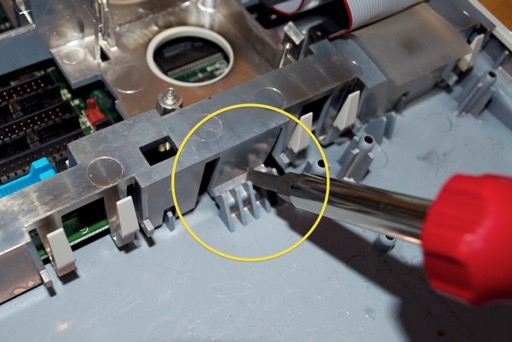

All that’s left to do is remove the whole assembly that houses the logicboard. Pop the tab that is in front of where the speaker was.

Pasted Graphic 1257

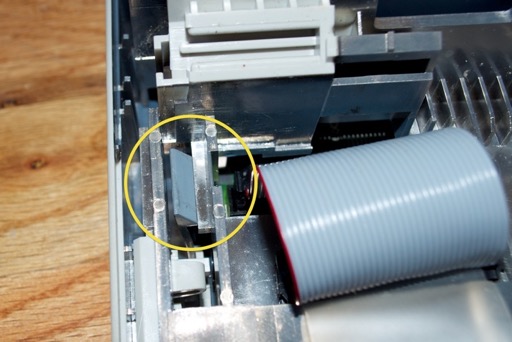

Followed by the ones on the right and left.

Pasted Graphic 1256

Pasted Graphic 1255

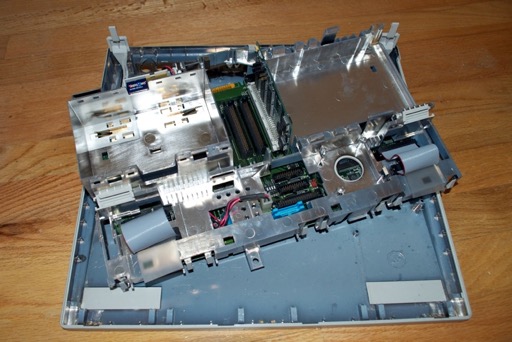

The whole logicboard assembly will lift right out.

Pasted Graphic 1254

Come to think of it, the whole thing probably would have come out without removing the drives and the speaker. Oh well.

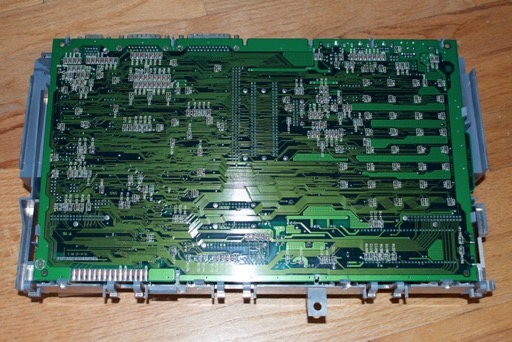

Pretty cool underneath. Just like the display, that’s one busy-looking logicboard!

Pasted Graphic 1253

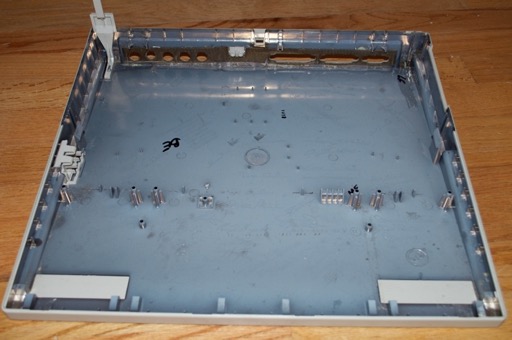

The two legs that stand from the bottom are used to release the top cover. They are glued to the bottom of the case. Apparently, the glue on the right leg is dried up, as it fell off once I touched it.

Pasted Graphic 1252

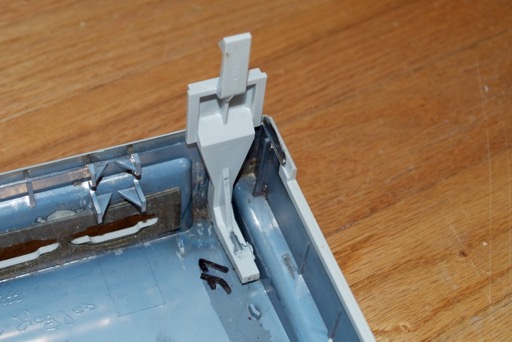

I fixed it with a drop of super glue.

Pasted Graphic 1251

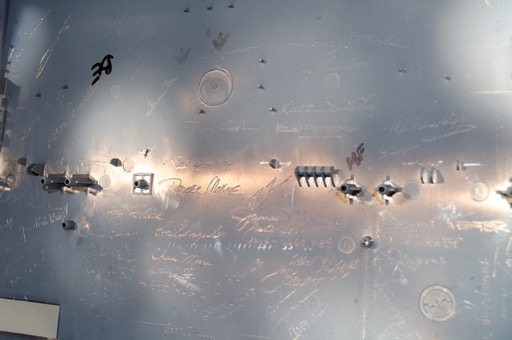

One thing you’ll notice once you so much as remove the trackball or keyboard, is that the design team etched their signatures into the case. Strange how this practice was abandoned with the SE, to be picked up again with the Portable. As far as I know, no other Macintosh after the Portable has signatures inside the case. Pretty neat.

Pasted Graphic 1250

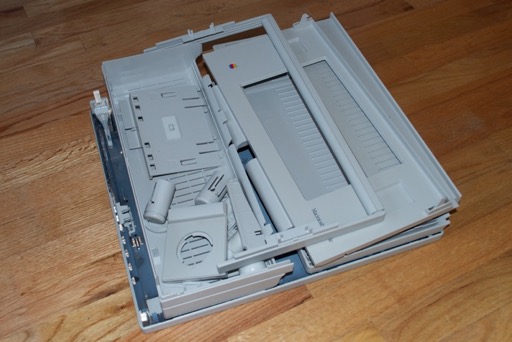

That’s it. All disassembled and ready to be washed in the sink.

Pasted Graphic 1249

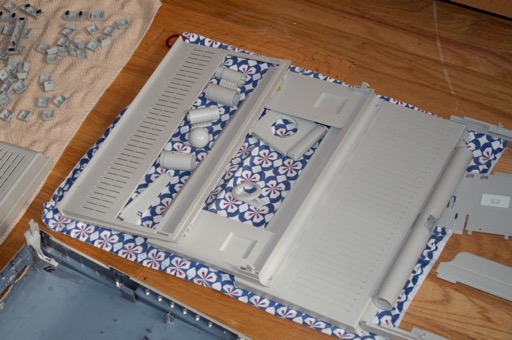

I gave them a good scrubbing and laid the parts out to dry.

Pasted Graphic 1248

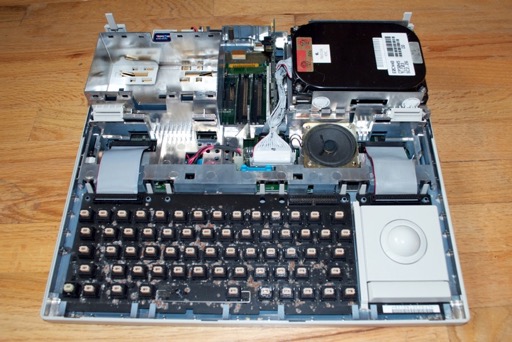

Putting the logicboard assembly, the drives, and the keyboard and mouse back together took all of 2 minutes.

Pasted Graphic 1247

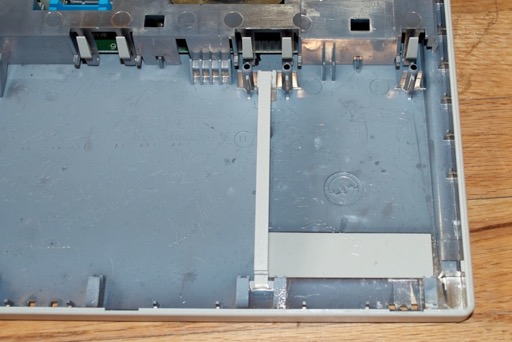

Just don’t forget to put the keyboard spacer in first or you’ll have to take the keyboard and trackball out again to get it in.

Pasted Graphic 1246

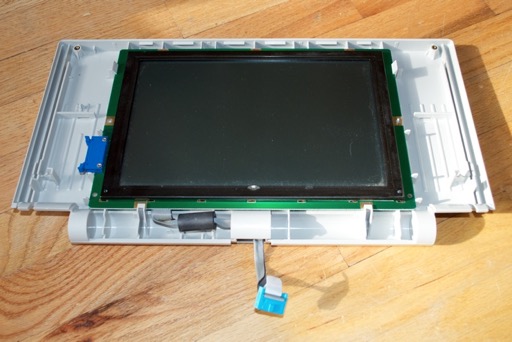

On with the display. Clip the panel back in, remembering to snake the cable behind and out the bottom.

Pasted Graphic 1245

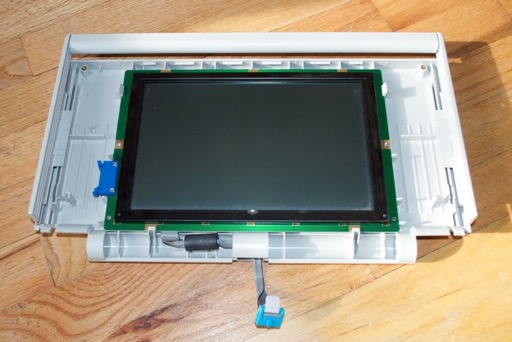

Align the handle on the back panel.

Pasted Graphic 1244

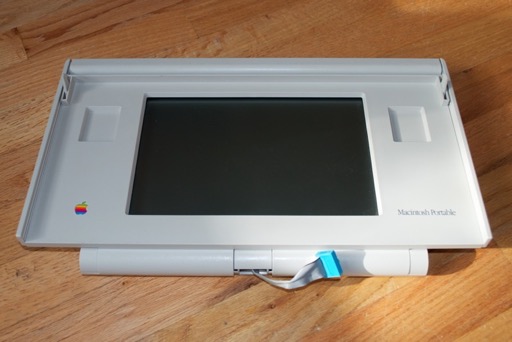

Then click the front panel back on and insert the 2 screws.

Pasted Graphic 1243

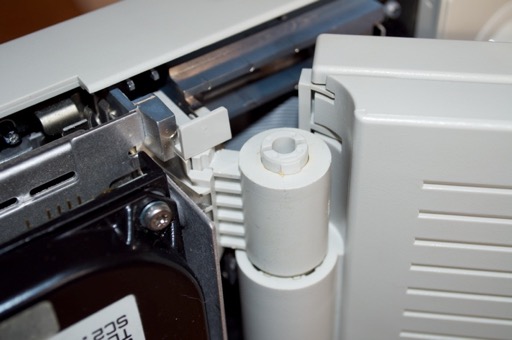

I found reattaching the display was better accomplished with the machine on its side. This allowed me to angle the display so that the teeth on the hinges were aligned. Once things are lined up, they’ll slide right in and you can slide the “keys” back in.

Pasted Graphic 1242

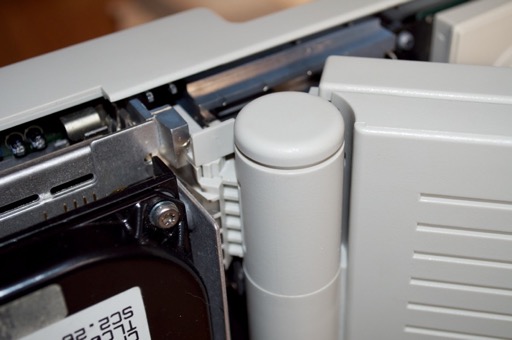

Then slide the caps back on.

Pasted Graphic 1241

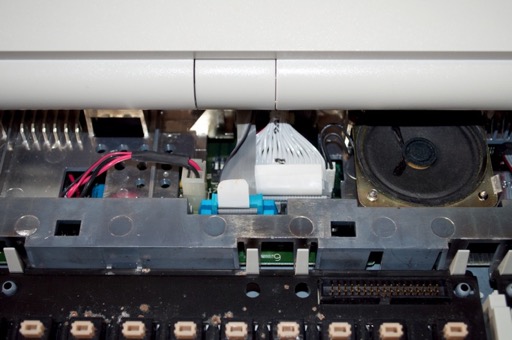

Reattach the display connector.

Pasted Graphic 1240

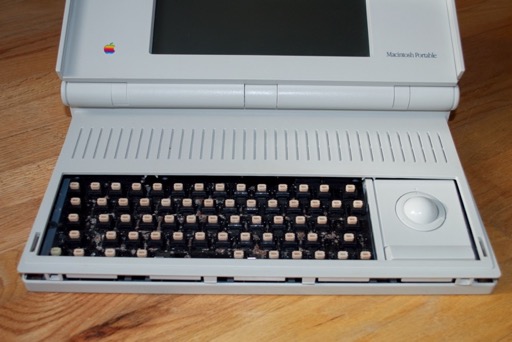

Slide the keyboard cover under the display.

Pasted Graphic 1239

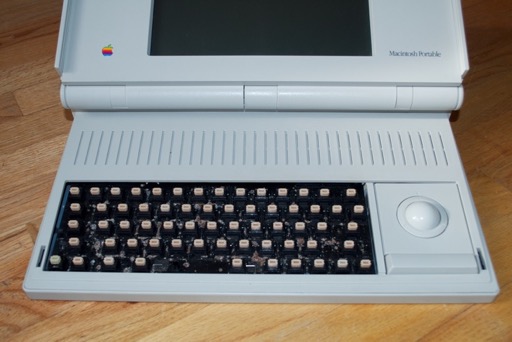

Then lock it down with a few clicks. Don’t forget to put the rubber feet back on underneath.

Pasted Graphic 1238

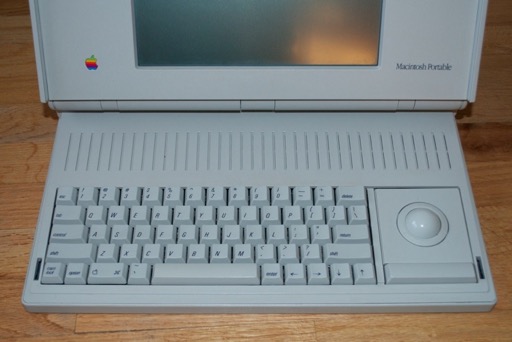

Last but not least, put all the keys back.

Pasted Graphic 1237

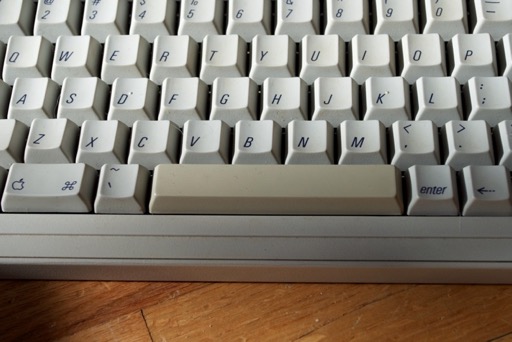

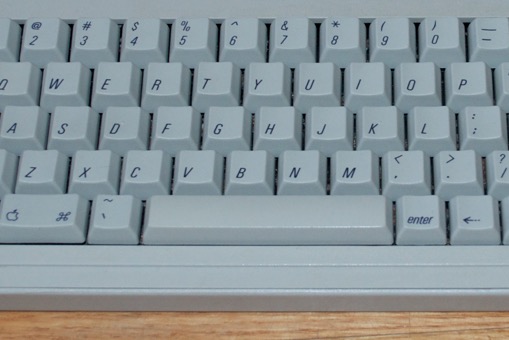

I’m really happy with the way the spacebar came out after dipping it for a few hours. Just look at the before and after shots.

Pasted Graphic 1236

Pasted Graphic 1235

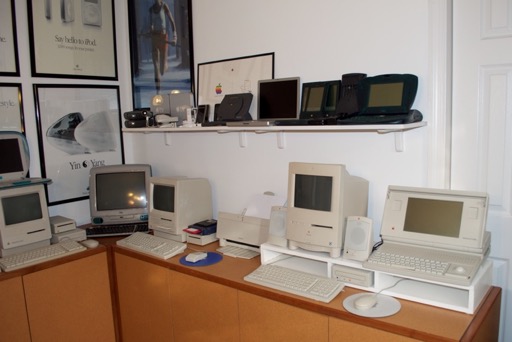

What a nice looking machine. Best of all, I didn’t have to dip the whole case. I did have to reorganize my Macs a little bit to find it a home. For now it’ll remain a display piece until I can get my hands on a battery that works.

Pasted Graphic 1234

I still have to rid the case of the cologne smell and attach the replacement foot that I ordered, but that’s for another day.
