M2115 Restoration

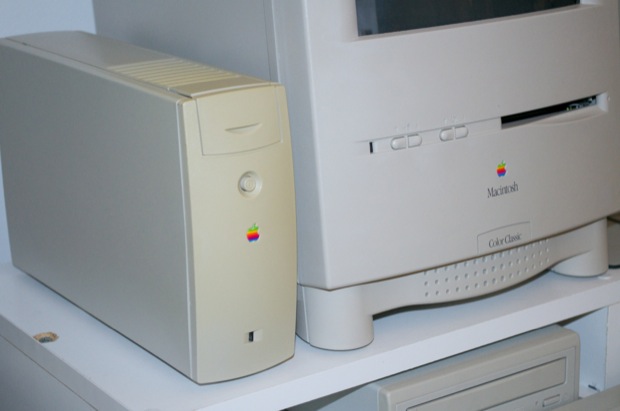

The awesome M2115 drive that I received a few days ago is begging for a retr0brite session. Just look how yellow it is compared to my perfect Color Classic.

M2115__0037

It’s nice and sunny outside today. It’s the perfect weather for retr0briting. Let’s get to it.

First, take the cover off by removing the two back screws.

M2115__0010

Then separate the two halves.

M2115__0016

M2115__0018

With the cover off, remove the two screws that secure the front panel.

m2115_retr0brite_0004

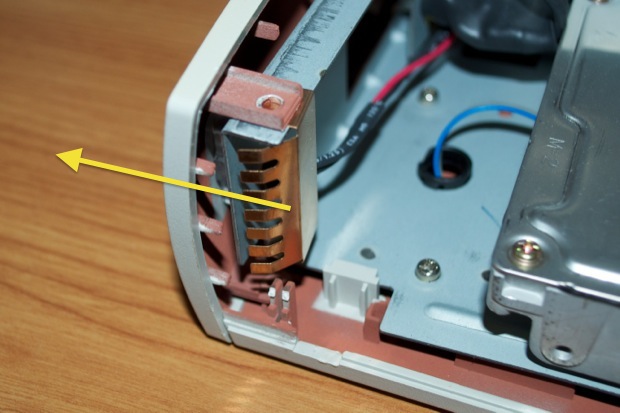

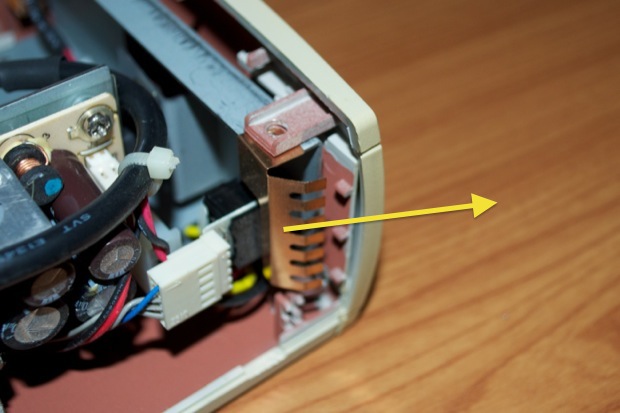

Once those two screws are out, remove the ground plates from both sides:

m2115_retr0brite_0007

m2115_retr0brite_0008

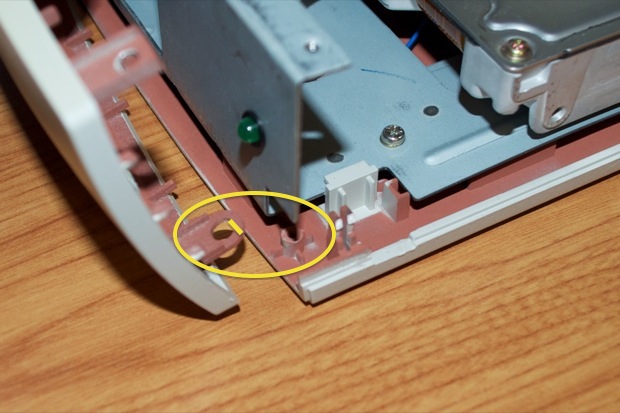

The front panel is secured by a “peg in a hole” at either end.

m2115_retr0brite_0012

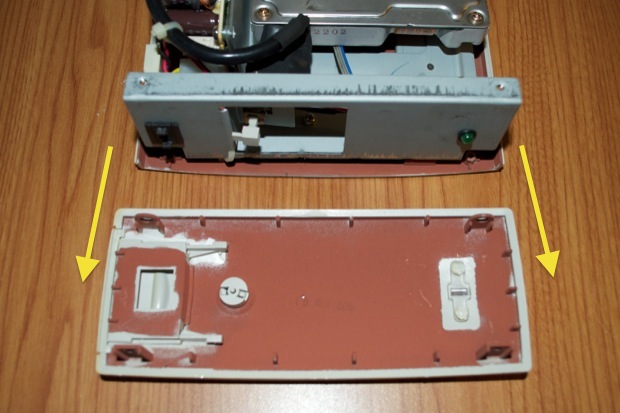

Just lift it up and out.

m2115_retr0brite_0010

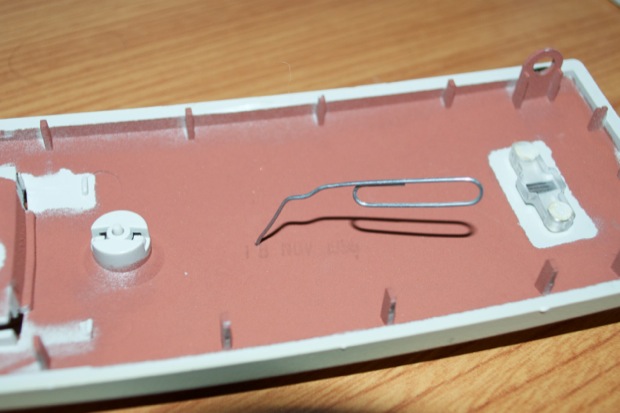

Take a small paperclip and push it through the hole on the reverse side of the front panel to pop out the Apple badge.

m2115_retr0brite_0013

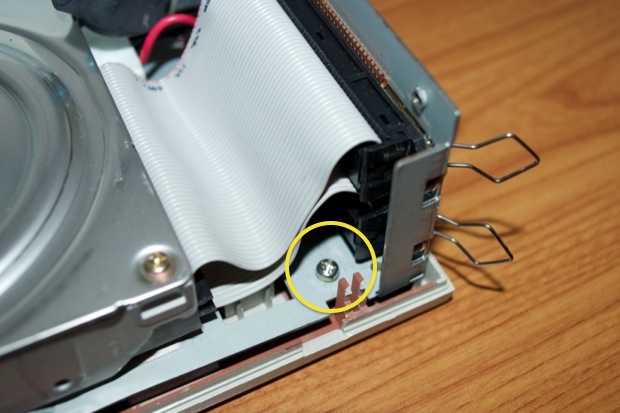

Back to the assembly, remove the screw from the chassis that is by the hard drive ribbon...

m2115_retr0brite_0005

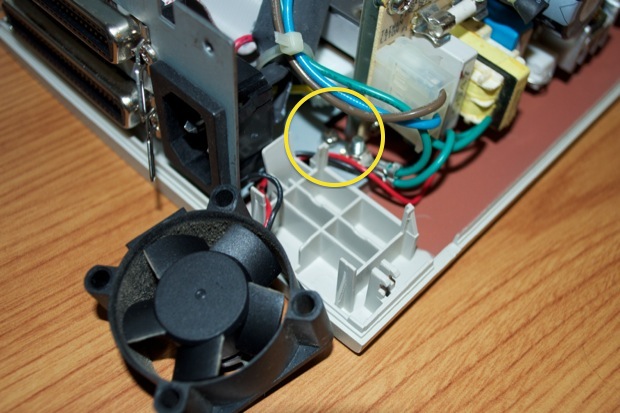

… the one by the fan...

m2115_retr0brite_0006

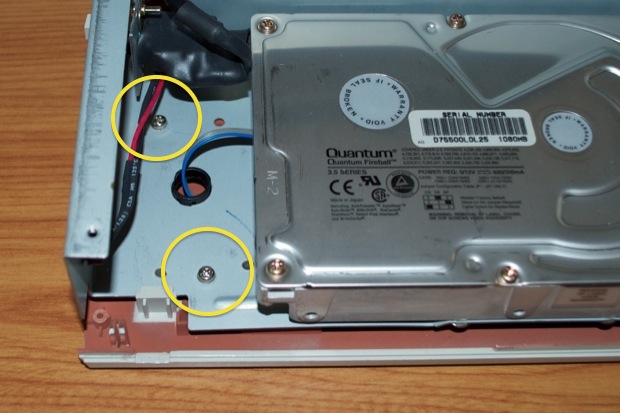

…and the two towards the front.

m2115_retr0brite_0017

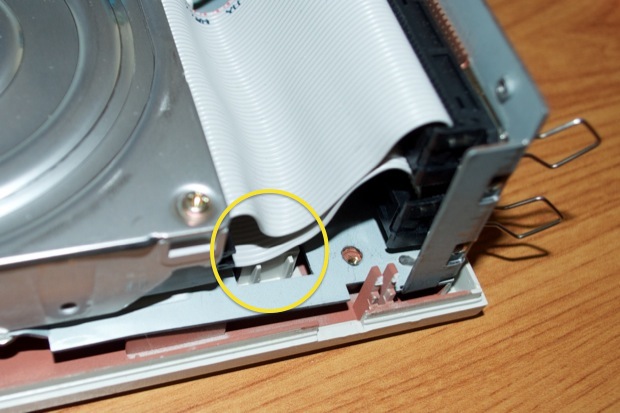

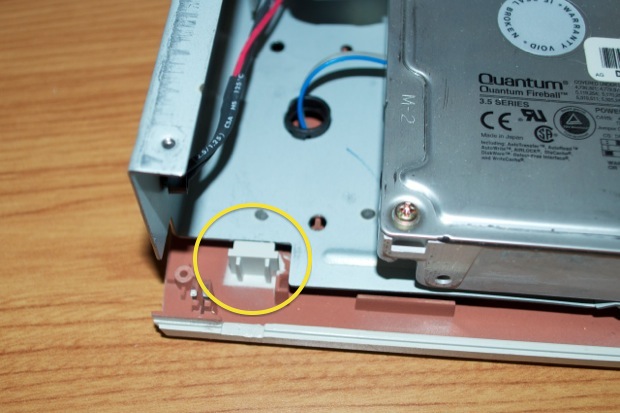

That should disconnect the chassis from the housing. Just slide the chassis out from underneath these two clips:

m2115_retr0brite_0018

m2115_retr0brite_0019

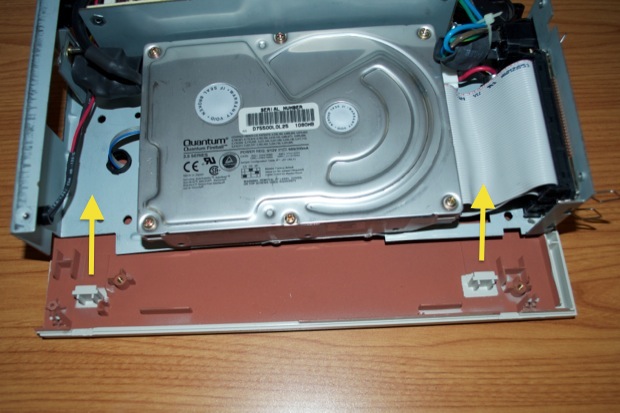

Once the chassis is free off the clips, just slide the whole assembly out.

m2115_retr0brite_0021

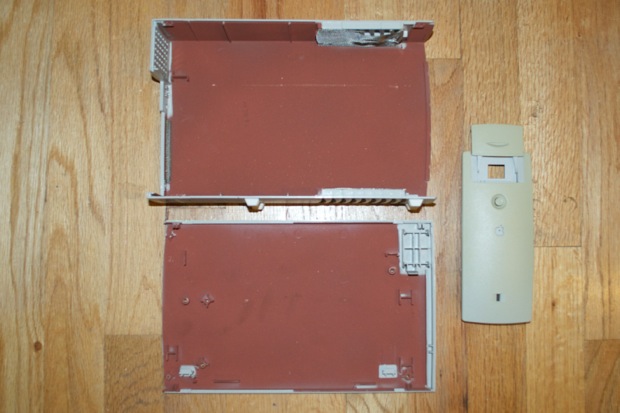

And that’s it. All ready to go.

m2115_retr0brite_0022

I placed the parts in a bucket and filled it up with enough water to submerge everything.

m2115_retr0brite_0023

I added peroxide and Oxy and let it soak in the sun for a few hours. They kept floating to the top, so I had to weight them down with a cup of water. It worked.

m2115_retr0brite_0024

Look at that Oxy bubbling action!

m2115_retr0brite_0025

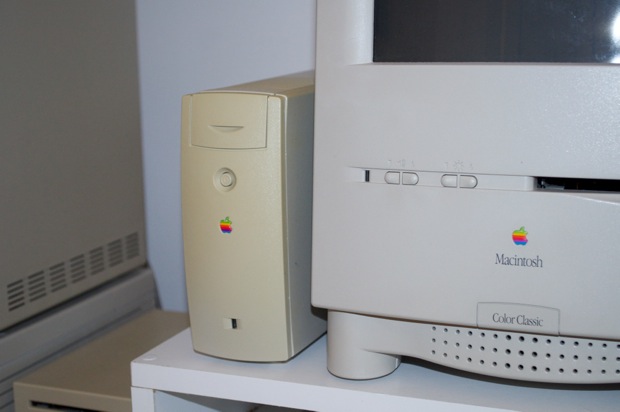

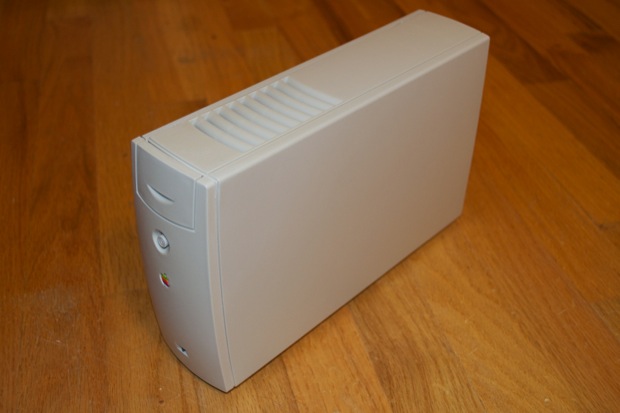

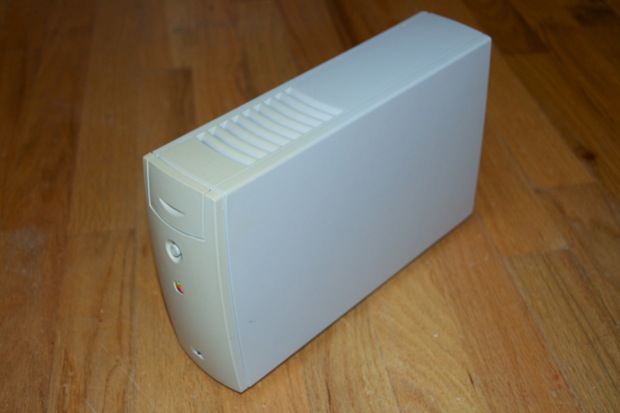

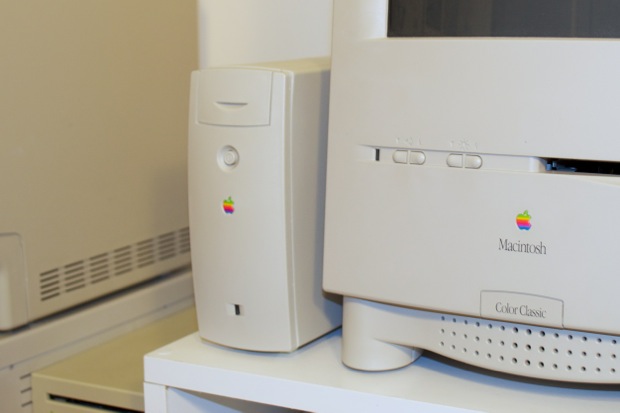

Wow, what a difference! After just a few hours in the hot sun, it’s as good as new. Here’s some before and after shots:

m2115_retr0brite_0030

m2115_retr0brite 00047

m2115_retr0brite 00043

m2115_retr0brite 00044

What a great find. I’m very happy with the results on this one. It looks so good next to the Color Classic.
