2002 G4 iMac 700

A friend at work hooked me up with his 2002 G4 iMac. He’d been having some trouble with it. It was being rather picky about starting up. He’d have to power it up a couple of times before it would do its thing. Now it just doesn't boot up at all. He’d already replaced it with a new Mac, so he was looking to finally get rid of it. Not a problem, I’m always willing to relieve someone of an old Mac.

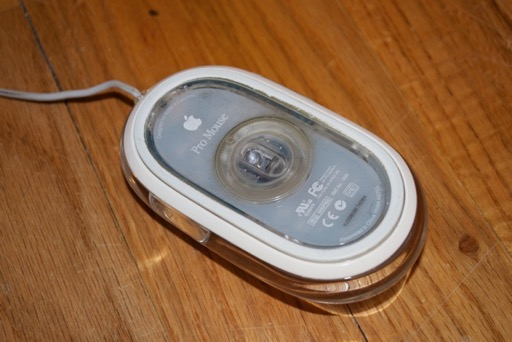

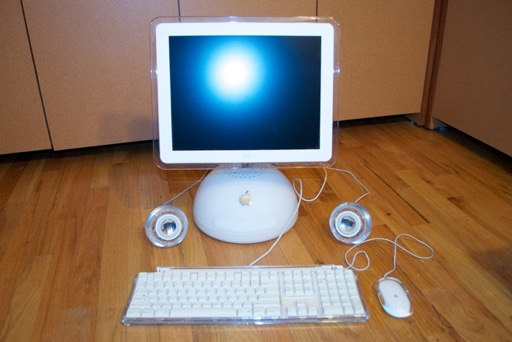

The machine came complete with the original keyboard, mouse, and speakers.

Pasted Graphic 1697

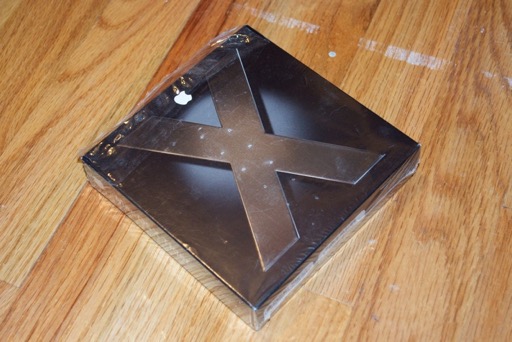

He even threw in some Panther upgrade CDs, a retail box of Tiger, as well as some cool books.

Pasted Graphic 1696

It needs a good cleaning, especially the keyboard, but overall it looks like it was well taken car of and doesn’t have a mark on it.

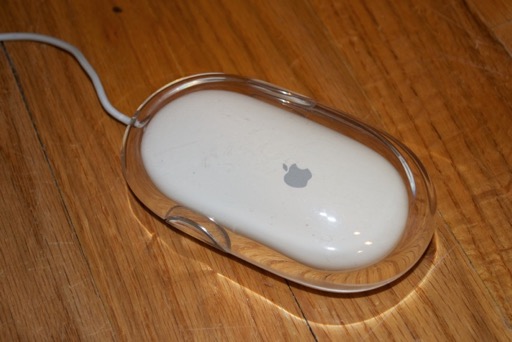

Pasted Graphic 1695

Pasted Graphic 1694

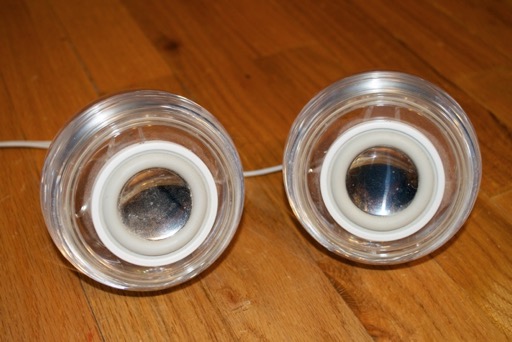

Pasted Graphic 1693

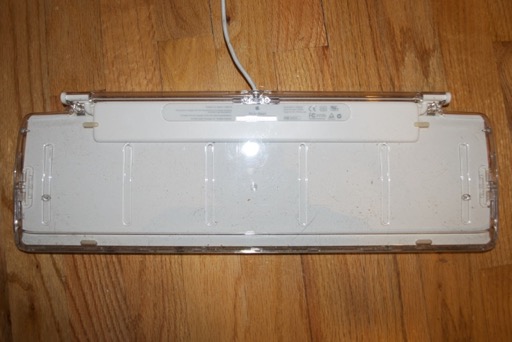

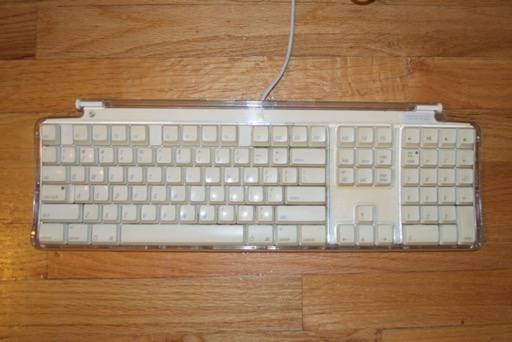

The keyboard is the only piece that shows yellowing. That strange right? I’ll have to take it apart to clean out all the dust, so that’ll be a good opportunity to retr0brite it.

Pasted Graphic 1692

Pasted Graphic 1691

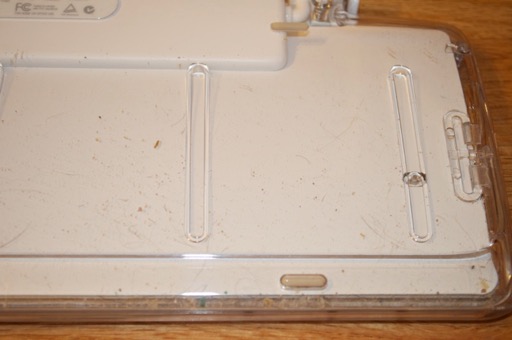

See, pretty dusty under there.

Pasted Graphic 1690

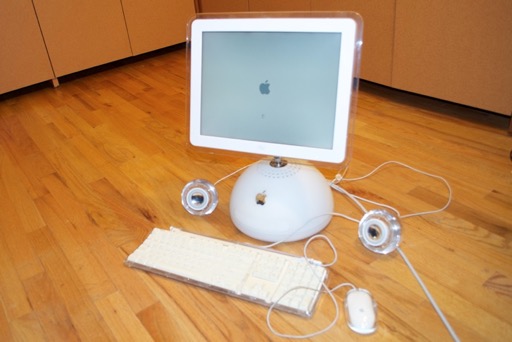

OK, let’s power it up and see what’s what.

Pasted Graphic 1689

Looks like that’s as far as it gets. I just hear a click, click, click coming from the hard drive. Sounds like it’s dead. Let’s open it up and pop in a new one.

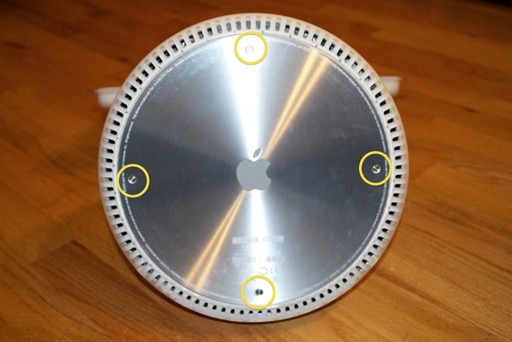

First, flip it on its side and unscrew the 4 screws on the base. Nice base huh? I’ve seen people make clocks out of those by drilling a hole in the center of the Apple logo and installing one of those cheap battery powered clockworks. Neat idea.

Pasted Graphic 1688

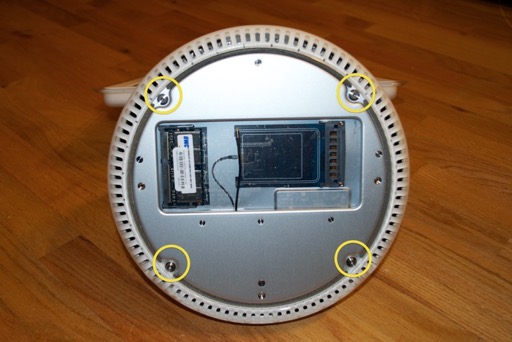

Remove the cover to reveal the RAM and Airport compartments. Looks like my friend gave it another 512 Megs. Free RAM upgrade are always nice! Remove 4 more screws.

Pasted Graphic 1687

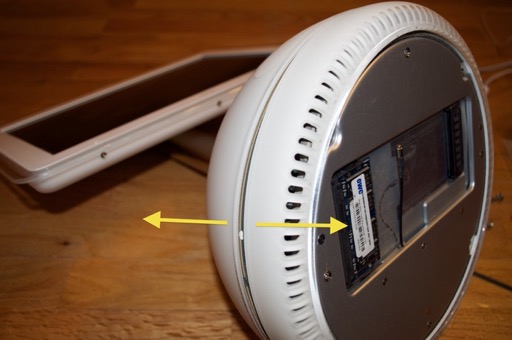

Once those 4 screws are out, you should be able to pry the base apart.

Pasted Graphic 1686

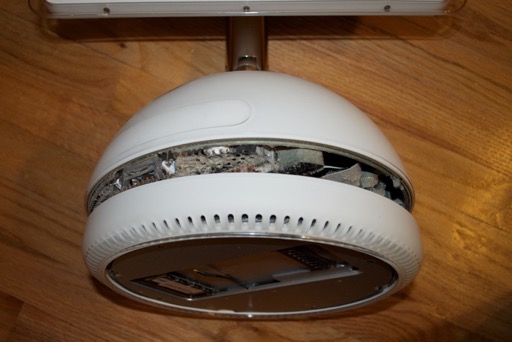

Just work your fingers around the base until the two halves have been separated. Be careful, some of those edges are sharp. Also, be careful not too pull too hard as both halves are connected by wires.

Pasted Graphic 1685

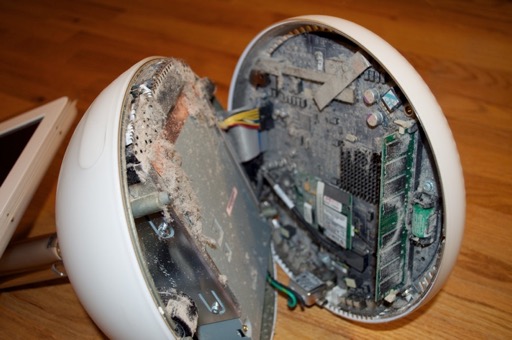

Wow, that’s dusty in there! Where’s my can of air?

Pasted Graphic 1684

That’s better.

Pasted Graphic 1683

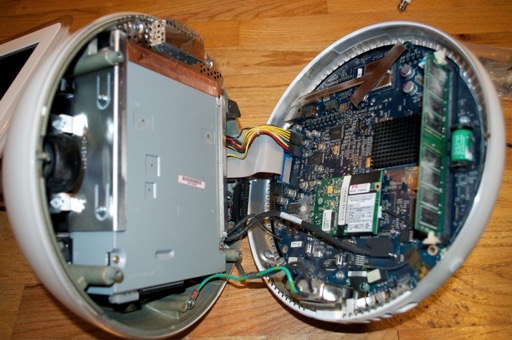

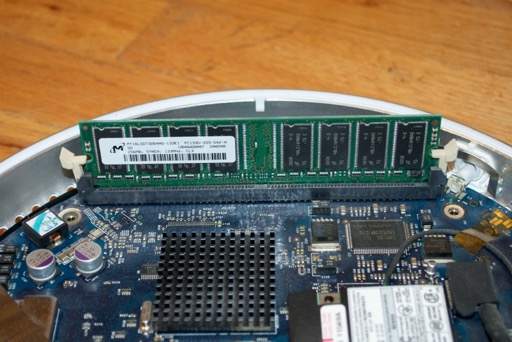

The is an original 700 MHz iMac. This model was available with a standard 256 or 512 Megs of RAM. This one came with 256 Megs. With the 512 Meg stick my friend installed, this iMac has 768 Megs.

Pasted Graphic 1682

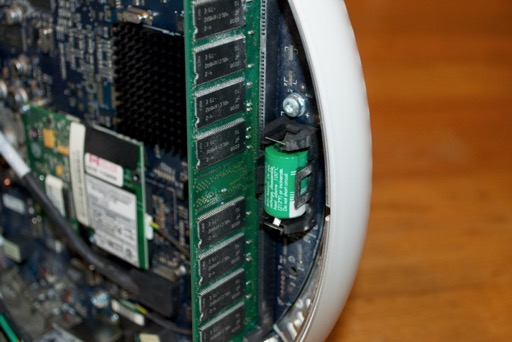

Now’s also a good time to check the PRAM battery. I checked it and it was still 3.64 Volts. Good to go.

Pasted Graphic 1681

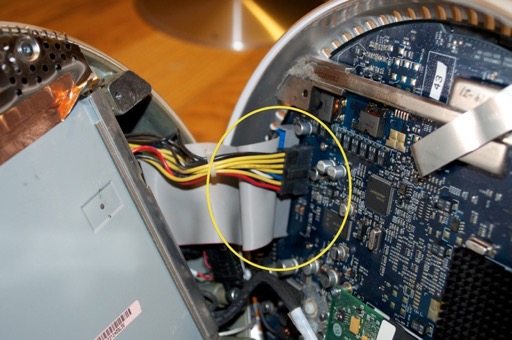

Moving right along, let’s get to that hard drive. It’s tucked away neatly under the optical drive. So the entire drive assembly will have to be removed. Start by removing the ribbon and power cable from the logicboard.

Pasted Graphic 1680

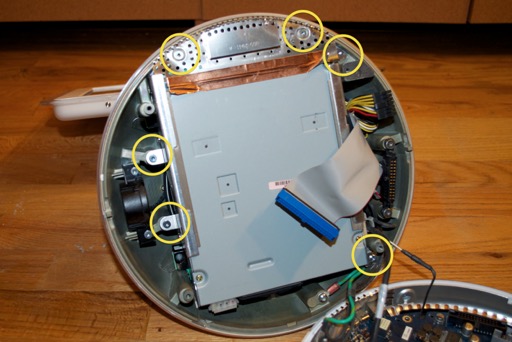

Only disconnect those 2 cables, don’t remove the other grounding cables or anything else. Once the drive caddy has been disconnected, remove the 6 screws that hold it in place.

Pasted Graphic 1679

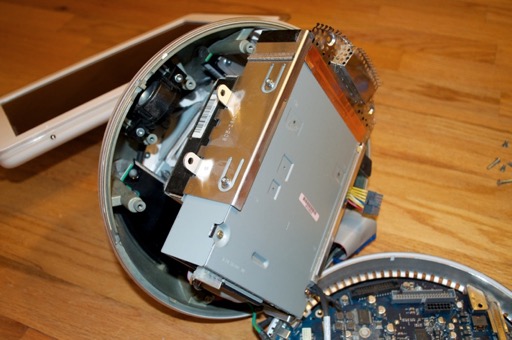

It’s a little tricky getting the drive assembly out so you’ll have to wiggle it a bit. Be careful not to damage any of the other surrounding wires.

Pasted Graphic 1678

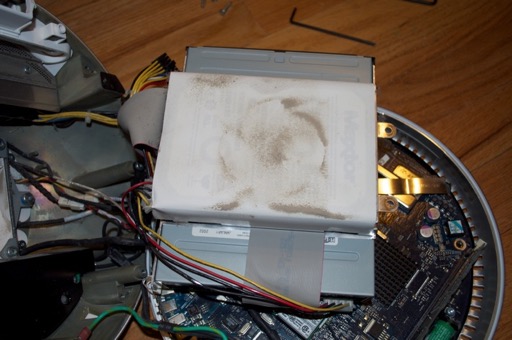

The hard drive is screwed to the top of the optical drive. Wow, more dust.

Pasted Graphic 1677

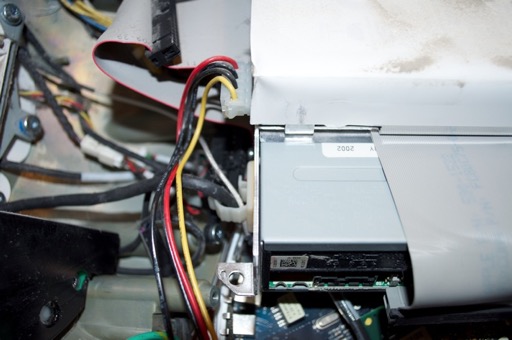

Remove the molex connectors from both drives. They were very tight and were really hard to get out. I almost broke all my nails.

Pasted Graphic 1676

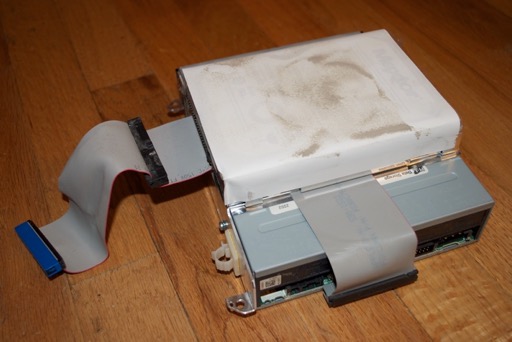

Once the power cables have been disconnected, you should be able to remove the entire drive assembly.

Pasted Graphic 1675

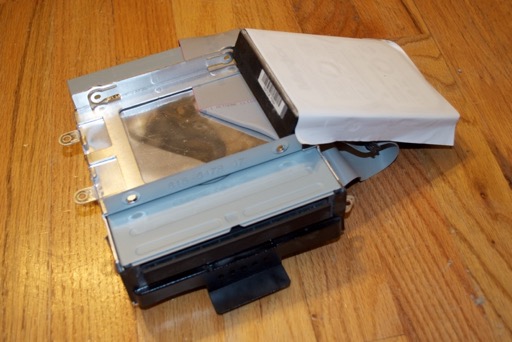

Remove the 4 screws that secure the hard drive. It’ll slide right out.

Pasted Graphic 1674

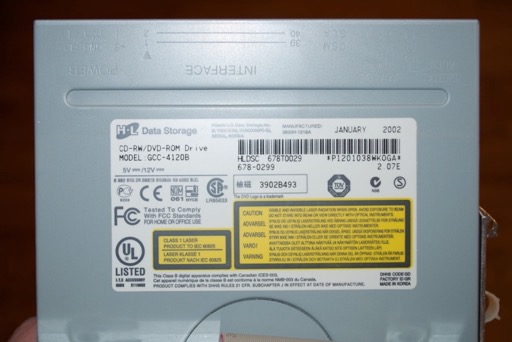

Once the hard drive was out I was able to determine what kind of optical drive I have. The base model shipped with a CD-RW. A combo drive and Superdrive were also available as upgrades. This drive is a combo drive. It can burn CDs, but can only read DVDs. Not that I’ll ever need to burn a DVD on it.

Pasted Graphic 1673

This iMac shipped with a 40 Gig hard drive. What good is a 40 Gig hard drive in a modern computer? See, this is why you never throw away a hard drive. No matter how small. You never know when they’ll come in handy. I just happen to have a spare 40 Gig drive at the ready. I screwed it into the drive assembly and put the iMac back together.

Pasted Graphic 1670

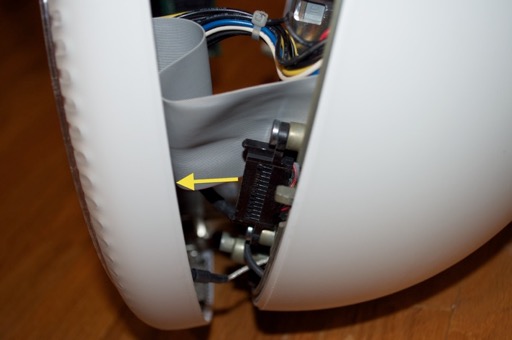

One note, just make sure when you put everything back together that you keep the wires clear of this black connector. It needs to match up and engage the matching socket on the logicboard. So make sure it snaps back in nicely when you put the base back on.

Pasted Graphic 1672

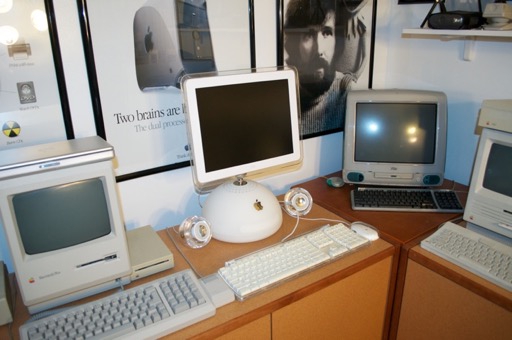

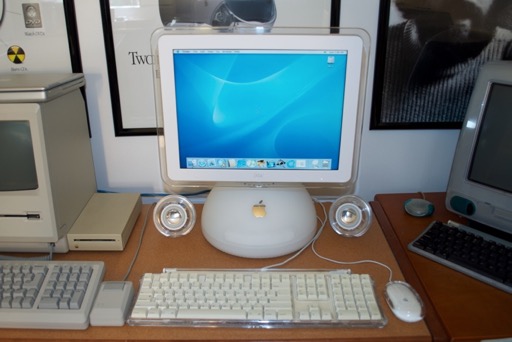

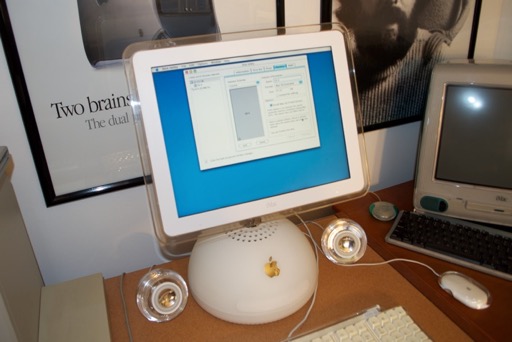

Once everything was back together, I took some alcohol wipes and cleaned the whole thing off. It looks as good as new. I made some space for it and connected everything. It looks awesome.

Pasted Graphic 1669

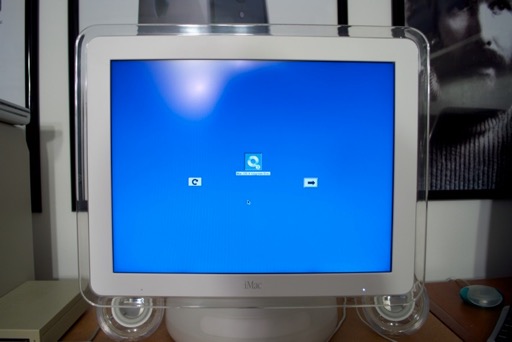

OS X Time. I want to put Tiger on it, but it might be overkill. With only a 700 MHz G4 and 768 Megs of RAM I don’t know how slow the machine will be. Maybe I’ll jut stick with Panther. I popped in the CD and powered on the iMac. Strange, it didn’t boot off the CD. I restarted the iMac holding down the option key.

Pasted Graphic 1668

That explains it. “Mac OS X Upgrade CD”. The Panther CDs my friend gave me are upgrade CDs, so I can’t start off with those. I didn’t notice that it said that right on the CD. I’ll have to put 10.2 on there and upgrade to 10.3.

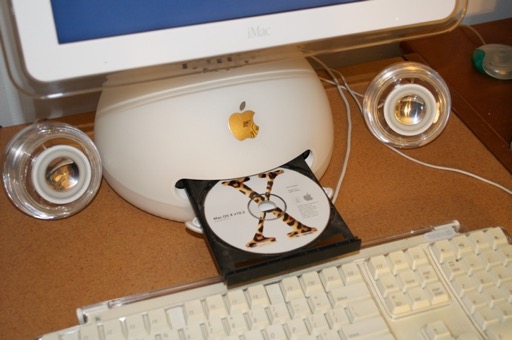

I popped in my 10.2 disc and let ‘er rip.

Pasted Graphic 1667

We’re off to a good start.

Pasted Graphic 1666

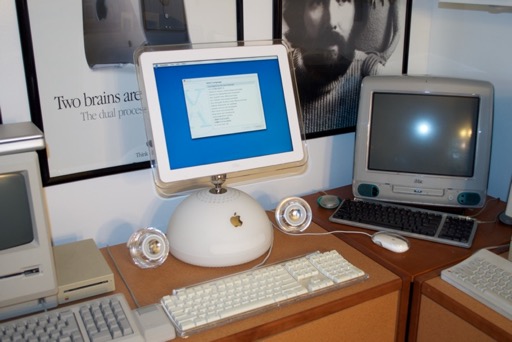

I used Disk Utility to partitioned and format the 40 Gig drive.

Pasted Graphic 1665

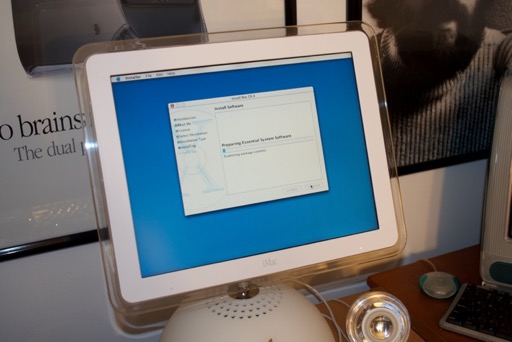

And then proceeded with the installer.

Pasted Graphic 1664

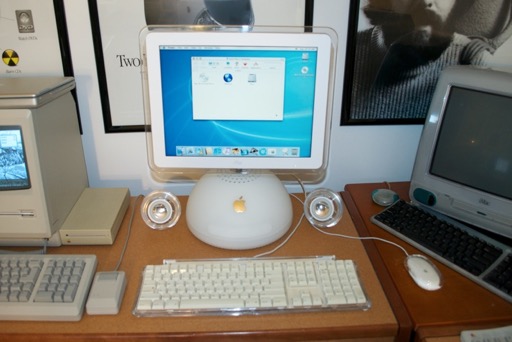

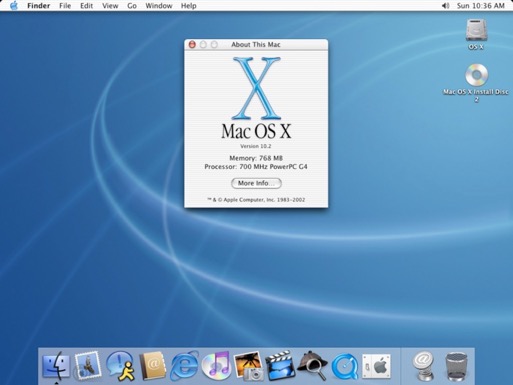

OS X 10.2

Pasted Graphic 1663

I took a couple of minutes to poke around.

Pasted Graphic 1662

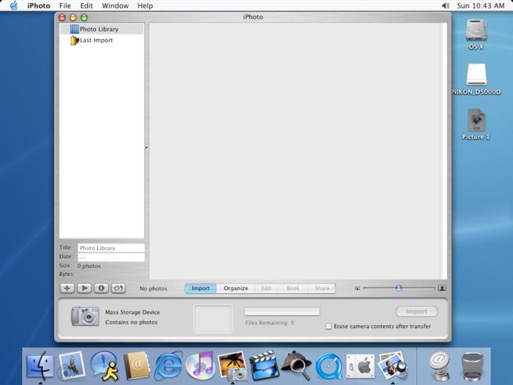

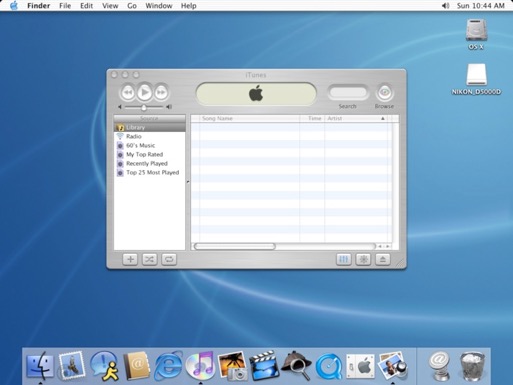

Gotta love the old school iPhoto and iTunes.

Pasted Graphic 1661

Pasted Graphic 1660

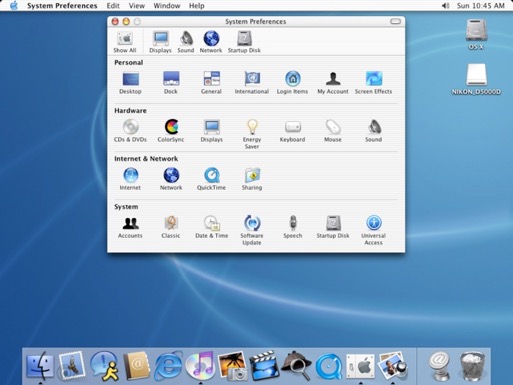

Pasted Graphic 1659

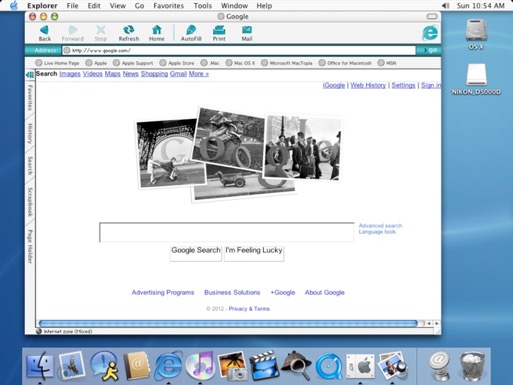

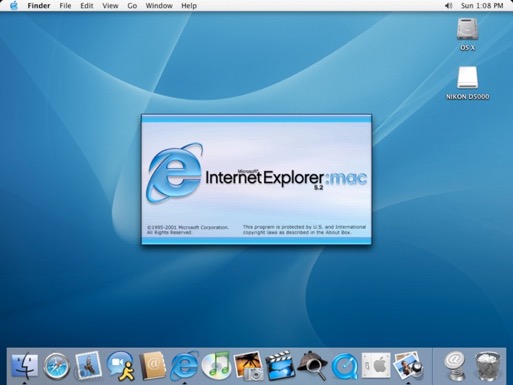

Internet works. IE. That cracks me up every time. And yes, it crashed trying to get to Apple.com.

Pasted Graphic 1658

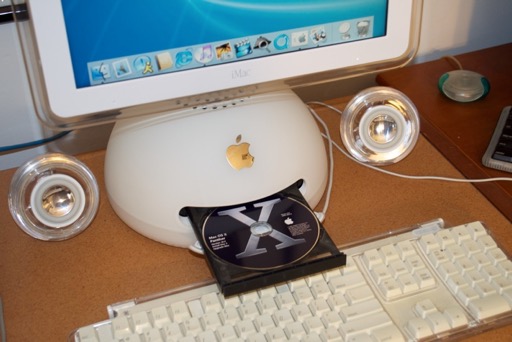

On with the upgrade to 10.3. I popped in the 10.3 upgrade CD....

Pasted Graphic 1657

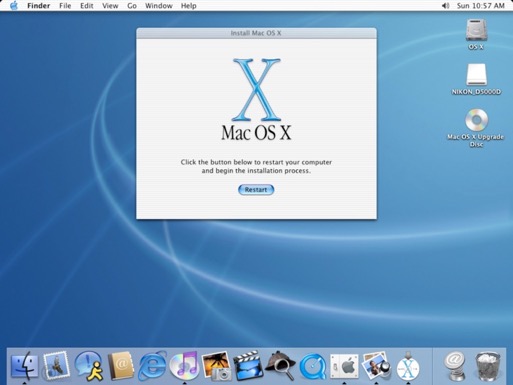

...and pressed Restart.

Pasted Graphic 1656

Again, off to a good start.

Pasted Graphic 1655

And BOOM! 10.3.

Pasted Graphic 1654

Pasted Graphic 1653

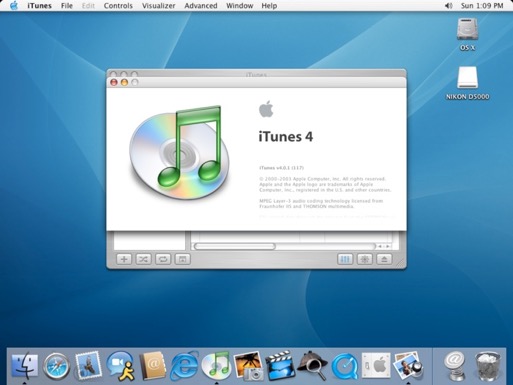

Out with the purple note and in with the green. iTunes 4.

Pasted Graphic 1652

Wow, IE’s still the browser of choice? Jobs wasn’t kidding about Safari being “ice water in hell”.

Pasted Graphic 1651

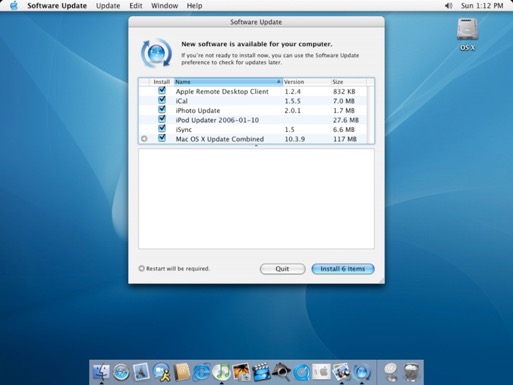

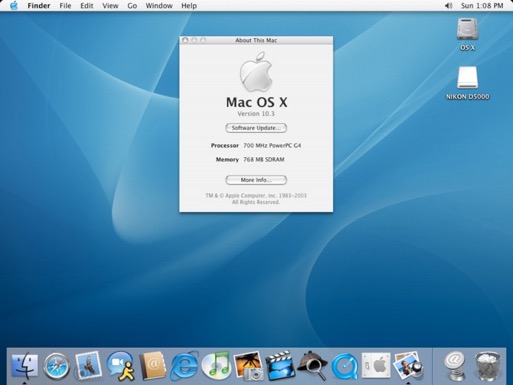

I ran a software update to bring the OS to 10.3.9.

Pasted Graphic 1650

Overall, it runs pretty smooth. Maybe I’ll just keep it at 10.3 and upgrade to 10.4 when I need it. The machine maxes out at 1 Gig of RAM, so if I ever get my hands on a 512 M stick of PC133, I’ll swap it out with the 256 M stick.

Now that everything works, all that’s left to do is restore the keyboard. That’s a big job, so it’s worthy of its own post.
