AppleDesign Speakers II & AppleCD 300e PLus

I’ve been dying to get my hands on a pair of AppleDesign speakers. I really wanted version one, but beggars can’t be choosers. These 2nd gen puppies just showed up on eBay with an AppleCD 300e Plus. I couldn’t resist!

All for a mere $20!

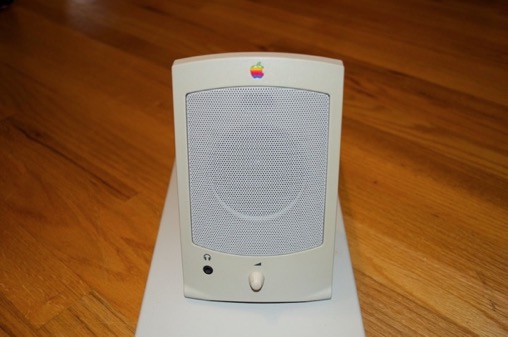

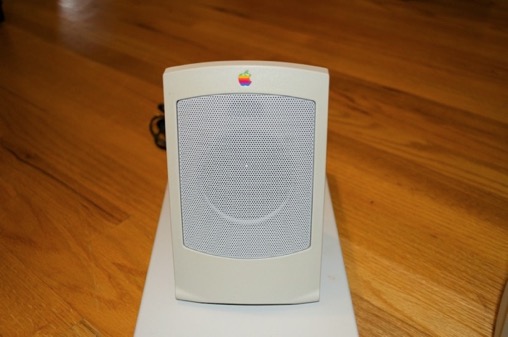

They show some yellowing. A retrobrite session will fix that.

Pasted Graphic 366

Pasted Graphic 367

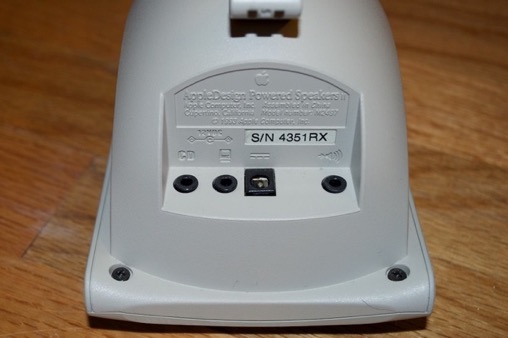

The date on the bottom is 1993. Also notice how the color on the bottom is pretty nice. That’ll be helpful when I dip them. I can use that to color match the fronts.

Pasted Graphic 368

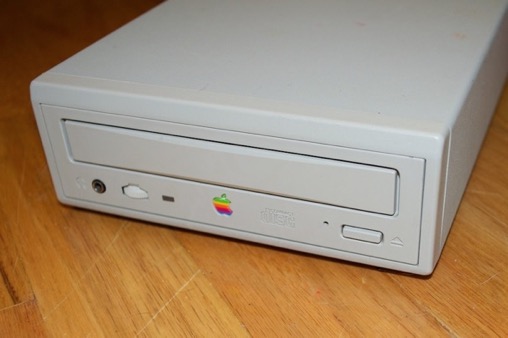

The AppleCD isn’t too bad. It looks better in the picture due to the flash. I’m going to give it a quick dip anyway.

Pasted Graphic 369

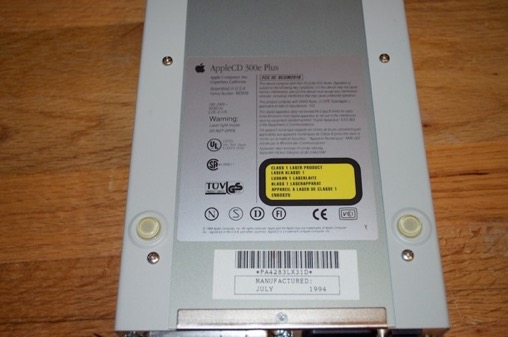

It’s dated 1994.

Pasted Graphic 370

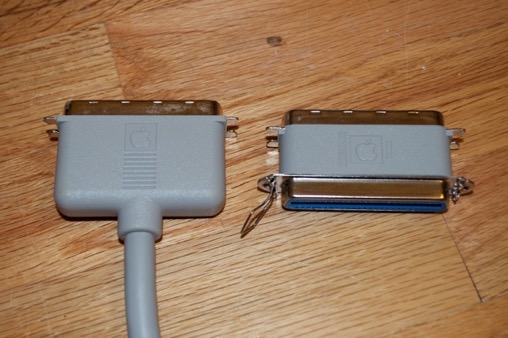

I was also pleased to find that all the original cables were included. Including the original Apple-logo power supply, SCSI cable, and adapter.

Pasted Graphic 371

They’re going to look great next to my Mac Classic! It’s funny, there’s no indication on the speakers which one is left and which one is right. A reader in a forum pointed out to me after I posted this picture that I had the speakers backwards. He said the one with the controls goes on the right. I’ll have to play something through them to find out and see for myself.

Once you see them next to a clean machine, you can definitely see the yellowing.

Pasted Graphic 372

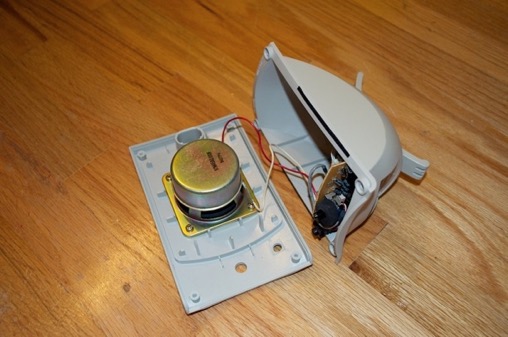

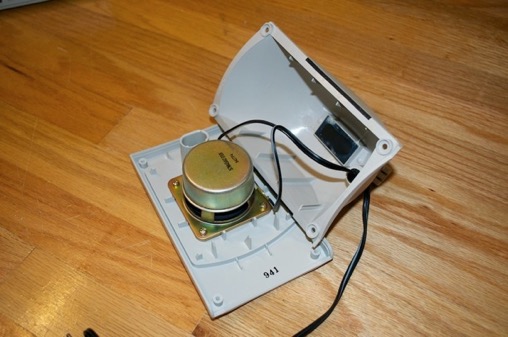

First order of business is taking them apart. Opening them up is easy enough. Just 4 screws each.

Pasted Graphic 373

Pasted Graphic 374

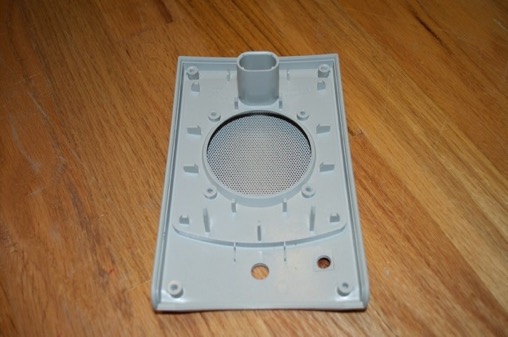

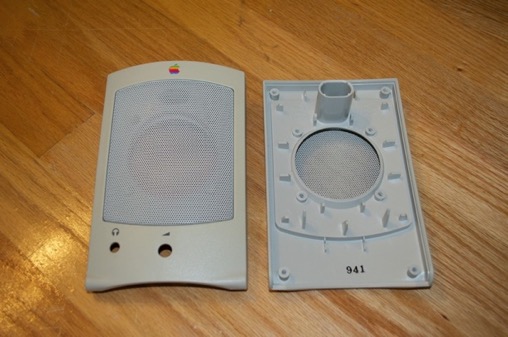

The color on the inside is also unchanged. That too will help with the dipping and getting the color right.

Pasted Graphic 375

I’ve seen worse, but wow!

Pasted Graphic 376

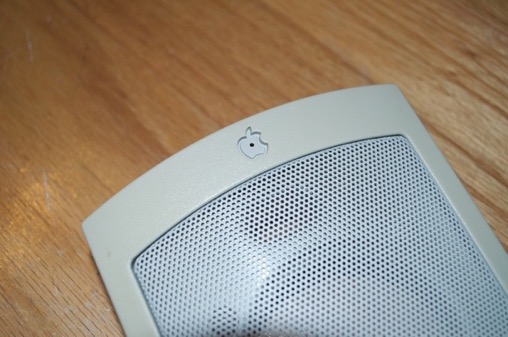

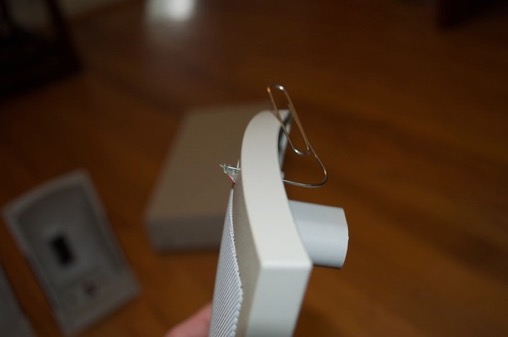

Popping the Apple logos off is easy enough. You just have to push a paper clip through the hole that is behind it. Apple thinks of everything!

Pasted Graphic 377

Pasted Graphic 378

Now for the CD 300.

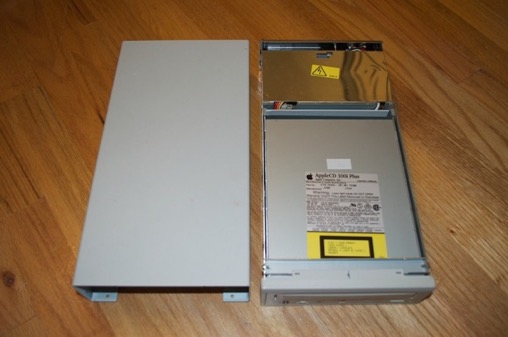

Remove the few screws that are on the bottom and slide off the enclosure.

Pasted Graphic 379

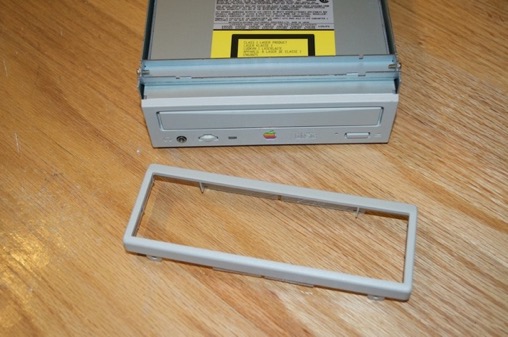

The front bezel pops right off. The face plate, however, is another matter.

Pasted Graphic 380

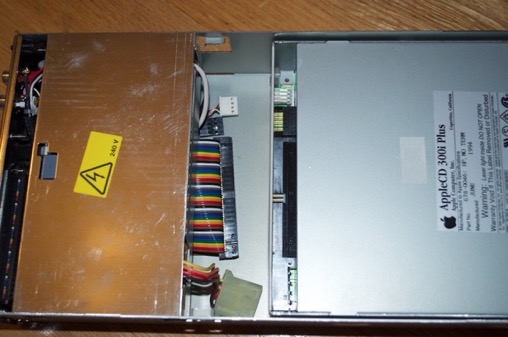

I removed the drive out of the tray by disconnecting the cable in the back.

Pasted Graphic 381

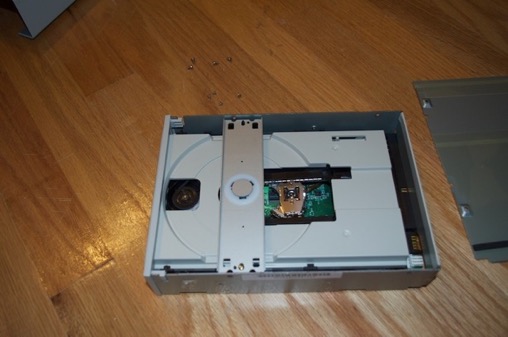

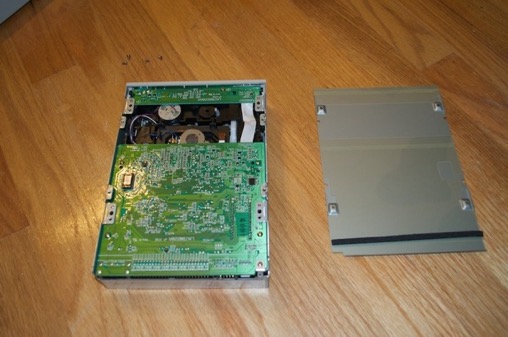

Once the drive is free, remove the top and bottom covers.

Pasted Graphic 382

Pasted Graphic 383

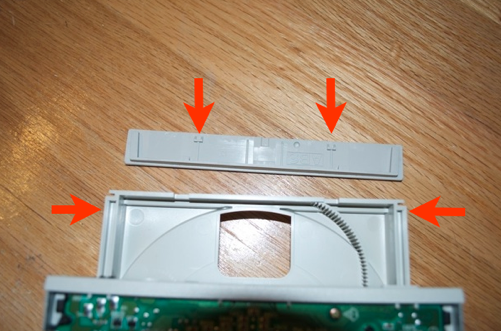

With the try accessible, slide it out a little bit, and pop the door off. It’s secured with a few little clips.

cd300_1

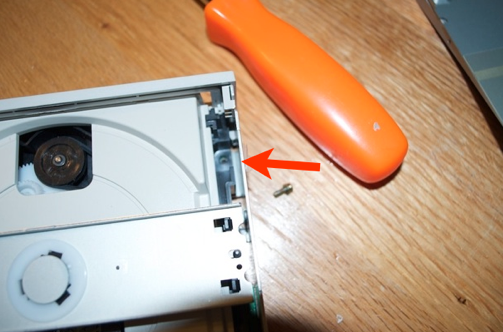

Now, remove these 2 screws (one on either side).

cd300_2

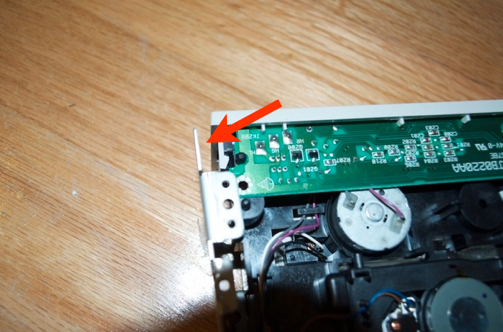

Once those 2 screws have been removed, you can slide the sides of the enclosure out .....

cd300_3

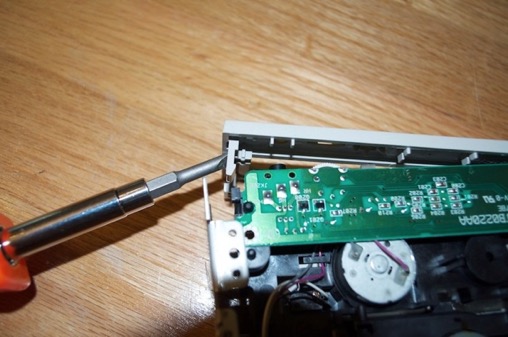

... just enough to pop the face plate off.

Pasted Graphic 384

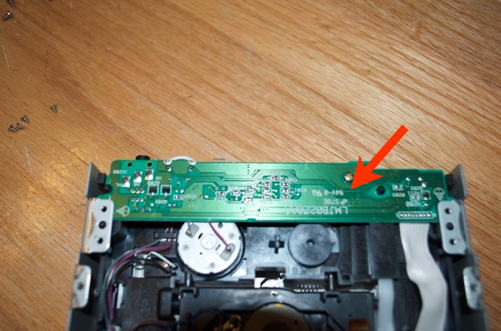

To remove the volume knob, remove this screw.

cd300_4

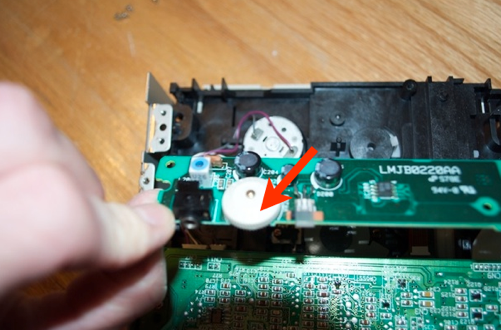

You can now free the daughter board, flip it over, and remove the screw that secures the volume knob.

cd300_5

Retrobrite Session One:

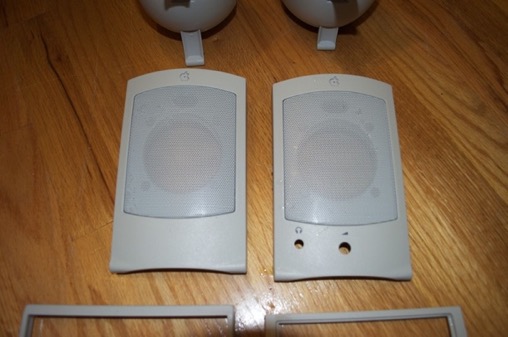

The sun disappeared as soon as I got the parts in the retrobrite. It threatened to rain all day. Even though I left the parts soaking for a good 4 hours, the results were not as dramatic as I had excepted. You can definitely see the difference that was made. But with the lack of sun, they're going to need a second dip tomorrow. (Weather permitting.)

Pasted Graphic 385

Pasted Graphic 386

Retrobrite Session Two:

I think the parts are good to go. I gave them a few more hours in the sauce and they came out great.

DSC_0270

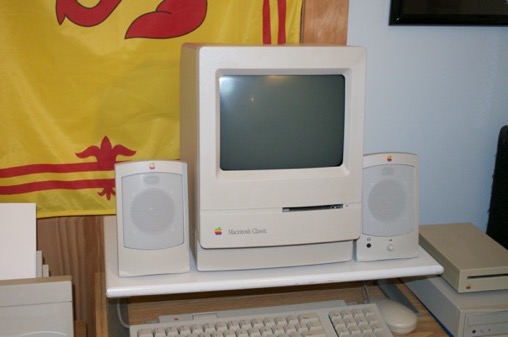

I let the parts dry for a few hours and them reassembled them. They came out awesome. And they look great next to my Mac Classic.

Pasted Graphic 388
